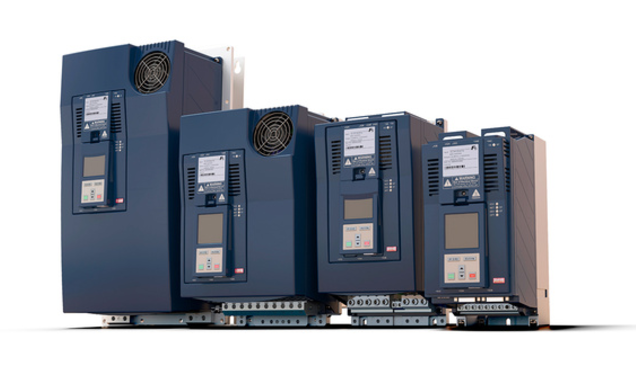

KEB COMBIVERT F6 - these are modern, high-performance and multifunctional AC converters for controlling asynchronous and synchronous (with built-in magnets or reactive) electric motors with power up to 400 kW. Effective control of speed, torque and position in real time, the relationship with the driven drive is carried out both through feedback and in sensorless mode.
The drive is based on a modular concept, the model range is divided into 7 housing dimensions, the design is optimized to the most compact dimensions. To ensure the safety of the drive system, specialized protection modules and control sensors are integrated. A very user-friendly user interface, a large screen on the front panel and a "COMBIVIS 6" configurator for working with a computer.
The series is available in two configuration options:
- compact version with system configuration - EtherCAT or VARAN/STO data transfer (safe torque shutdown) /Multi-touch interface;
- extended version - Multi-RealTime Ethernet with connection via an interface bus (EtherCAT, ProfiNET, Powerlink) and a security function configuration module.
Technical characteristics of the KEB COMBIVERT F6 AC electric drive
- Electric motor power: from 4 to 400 kW;
- Supply voltage: 400 V (3 phases);
- Overload capacity: up to 216 %;
- Output frequency range: up to 599 Hz;
- Management method: with or without feedback (ASCL/SCL);
- Interface: RS 232/485, Real-time Ethernet;
- Support for industrial networks: EtherCAT(embedded), POWERLINK, ProfiNET;
- Engine temperature monitoring (PTC, KTY or PT1000 sensors);
- 2-channel interface for various types of sensors: resolver, EnDat, HIPERFACE, BISS, SSI, incremental HTL/TTL, incremental output;
- Built-in braking resistor;
- Brake system control;
- Built-in security features;
- Air or water type cooling systems with various mounting options for the cooling unit;
- Protection class IP20.
Configuration of inputs/outputs of the KEB COMBIVERT F6 electric drive
- 2 analog inputs;
- analog output;
- 8 digital inputs;
- 2 digital outputs;
- relay output.
Nominal characteristics of standard sizes of KEB COMBIVERT F6 converters
Standard size | Power, kW | Current, A | Standard size | Power, kW | Current, A |
12 | 4 | 9,5 | 23 | 75 | 150 |
13 | 5,5 | 12 | 24 | 90 | 180 |
14 | 7,5 | 16,5 | 25 | 110 | 210 |
15 | 11 | 24 | 26 | 132 | 250 |
16 | 15 | 33 | 27 | 160 | 300 |
17 | 18,5 | 42 | 28 | 200 | 370 |
18 | 22 | 50 | 29 | 250 | 460 |
19 | 30 | 60 | 30 | 315 | 570 |
20 | 37 | 75 | 31 | 355 | 630 |
21 | 45 | 90 | 32 | 400 | 710 |
22 | 55 | 110 | - | - | - |
You can buy KEB COMBIVERT F6 frequency converters, find out the price and more information about the product by contacting our specialists.
