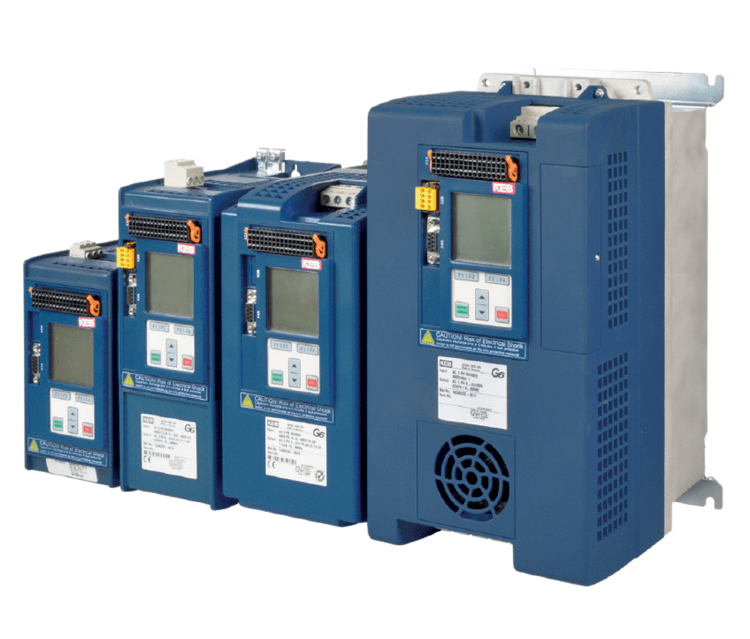

Sensorless frequency converters of the series COMBIVERT G6 designed to control asynchronous and synchronous electric motors with a capacity of up to 30 kW. They are equipped with new 32-bit microcontrollers, improved functionality, the highest standards in the accuracy of regulation and stability of maintaining the set operating parameters. Compact modular housing design in 4 dimensions, built-in fan to reduce heat load.
To control the electric drive, there is a built-in operating panel with a large LCD screen, as well as a user-friendly interface for starting and working with a computer (COMBIVIS 6).
Popular applications of COMBIVERT G6 include the food industry, packaging machinery, conveyors, crane and elevator equipment, compressors, woodworking machines, textile installations, escalators, and the medical industry.
Technical characteristics of the KEB COMBIVERT G6 AC electric drive
- Electric motor power: from 0.75 to 30 kW;
- Supply voltage: 200 - 240 V (1 phase), 380 - 480 V (3 phases);
- Overload capacity: up to 216 %;
- Output frequency range: up to 599 Hz (up to 800 on request);
- Management method: scalar, sensorless (ASCL /SCL);
- Interface: RS 232/485;
- Support for industrial networks: EtherCAT, CANopen, IO-LINK, VARAN;
- Engine temperature monitoring (PTC, KTY or PT1000 sensors);
- Built-in DC braking;
- Control of the engine brake system;
- Built-in security features;
- Built-in PID control;
- A complete solution for EMS;
- Overheating protection, monitoring of monitoring sensor signals, warning or safe shutdown;
- Cooling system: built-in fan;
- 8 settings for parameter control;
- Protection class IP20.
Configuration of inputs/outputs of the KEB COMBIVERT G6 electric drive
- 2 analog inputs;
- 2 analog outputs;
- 8 digital inputs;
- 2 digital outputs;
- 2 relay outputs.
Nominal characteristics of standard sizes of KEB COMBIVERT G6 converters
Standard size | Power, kW | Current, A | Food |
07 | 0,75 | 4 | 230 V, 1 phase |
09 | 1,5 | 7 | |
07 | 0,75 | 2,6 | 400 V, 3 phases |
09 | 1,5 | 4,1 | |
10 | 2,2 | 5,8 | |
12 | 4 | 9,5 | |
13 | 5,5 | 12 | |
14 | 7,5 | 16,5 | |
15 | 11 | 24 | |
16 | 15 | 33 | |
17 | 18,5 | 42 | |
18 | 22 | 50 | |
19 | 30 | 60 |
You can buy KEB COMBIVERT G6 frequency converters, find out the price and more information about the product by contacting our specialists.
