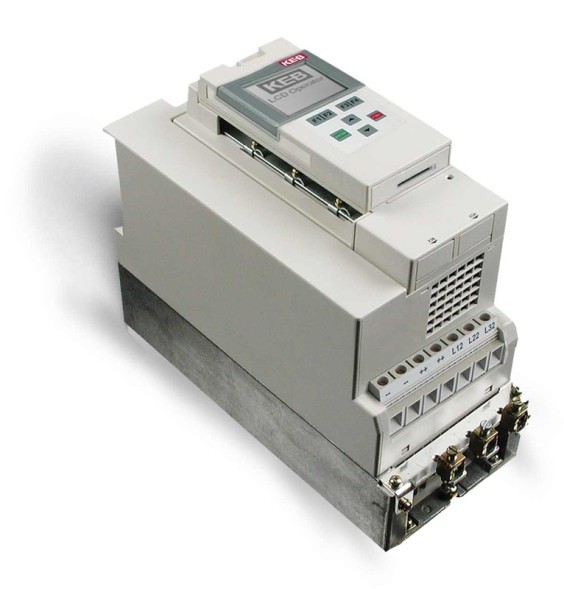

KEB COMBIVERT R6 AC drives

Power unit COMBIVERT R6 It performs two functions: energy regeneration from the drive controllers (single converter or from a common DC line of several units) back to the power supply network, and the second mode of operation as a power source similar to a B6 rectifier, the voltage remains constant. Depending on the type of design, built-in standard chokes or harmonic filters are used to reduce the indicator of nonlinear distortion.

The system is perfectly adapted to quick and easy integration into drive systems, the operation is configured via the operating panel or diagnostic interface. A wide range of supported industrial networks, automatic debugging and recognition. To demonstrate the effectiveness of the recuperator, there is a function for displaying the saved energy.

Technical characteristics of power supply and energy recovery systems for KEB COMBIVERT R6 frequency converters

• Power: from 11 to 900 kW;
• Supply voltage: 180 - 550 V, 3 phases;
• Built-in EMC and harmonic filters, chokes;
• User-friendly interface (keyboard, screen);
• Freely configurable inputs and outputs;
• Поддержка промышленных сетей: Profibus, Interbus, CANopen, DeviceNet, MODBUS, EtherNet TCP/IP, EtherCAT, ETHERNET POWERLINK, ProfiNET, EtherNet/IP;
• Energy saving monitoring function (counter).

Nominal characteristics of standard sizes KEB COMBIVERT R6

You can buy power supply and recovery systems for KEB COMBIVERT R6 frequency converters, find out the price and more information about the product by contacting our specialists.
