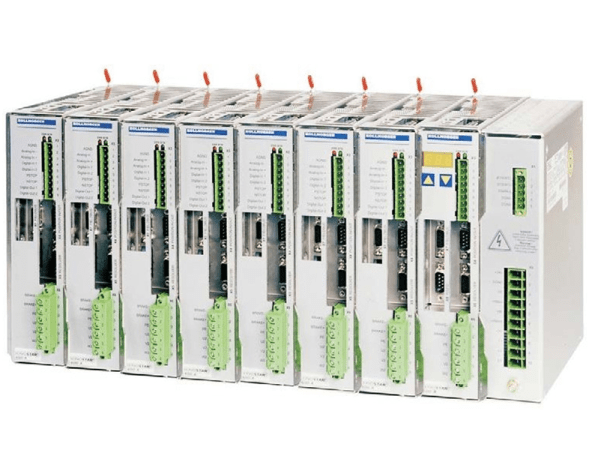

Variable Digitaler Servoverstärker drive, SERVOSTAR 443M-C, S403AM-CA

Digital servos of the series S400 from Kollmorgen It has two classes of power parameters with an output of 3 A and 6 A, extensive current, speed and position control capabilities, adaptive adjustment. They are used to work with synchronous servomotors, asynchronous and linear motors.

Up to eight axes of the same standard size can be installed in the system. Freely programmable channels, a total of 4 inputs and 2 outputs. The drive design is placed on DIN rails, easy installation.

Monitoring and configuration is carried out using the supplied software installed on a PC, on the front panel there are LED indicators and a display indicating the current status.

Attention! This system is technically outdated and is only available for replacement, we recommend paying attention to the modern AKD series drives that replaced them.

Technical characteristics of Kollmorgen SERVOSTAR 400 servo converters

• Supply voltage: 1AC 110 - 230 V, 3AC 230 - 400 V ;
• Output current: 3, 6 A;
• Max. Output current: 9, 12 A;
• Configuration: multi-axis (up to 8 axes in one system);
• Interfaces: RS232, CANopen, optional EtherCAT, PROFIBUS and SERCOS;
• Feedback: resolvers, high-resolution encoders;
• Visualization and customization tools: display, LED status indicator, setting via PC interface;
• Other features and functions: freely programmable speeds, position control, encoder emulation, motor brake control, overvoltage, short circuit, fault protection, system temperature control, built-in interference filter, brake resistor and others.

Optional Kollmorgen S400 drive modules

• Modules of industrial networks.
• External braking resistor.

Parameters of standard sizes of Kollmorgen S400 series servos

Master modules

axial modules

You can buy Kollmorgen SERVOSTAR 400 (S400) series servos, find out the price and more information about the products by contacting our specialists.
