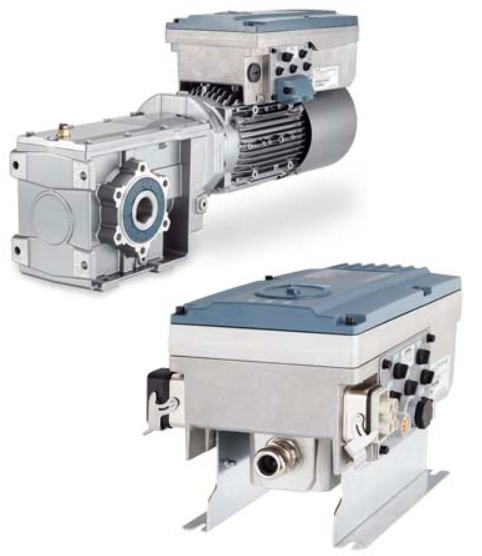

Siemens SINAMICS G110M AC drives

Converter SINAMICS G110M This is a comprehensive solution for decentralized tasks, consisting of a control module, a connecting part, a power module and a three-phase gear motor of the SIMOGEAR family. For harsh conditions when working outdoors, this series has a dust-proof housing and protection against water ingress (splashes, jets of varying degrees of strength and any direction).

Quick start-up and debugging of work without unnecessary hassle right at the location. All used parameter templates are stored in the drive memory. Maximum flexibility in management, 3 modes for conducting the production process. They are often used as part of conveyor systems with remote distribution of drives, for fans, compressors or pumps.

Two versions:

• ready-made universal SINAMICS G110M offer + SIMOGEAR gear motor
• separate SINAMICS G110M unit with wall mounting hardware

There are two body dimensions: A (FSA) and B (FSB).

Technical characteristics of the SINAMICS G110M electric drive

• Supply voltage: 380 - 480 V AC, 3 phases;
• Rated power: 0.37 - 4 kW;
• Control methods: scalar, flow coupling (FCC), vector (sensorless);
• Safe Torque Shutdown (STO);
• Saving the settings for the motor in the drive memory
• Standard PLC functions;
• Internal braking resistors;
• Interfaces used: USS, Modbus, PROFINET (Ethernet IP), PROFIBUS, AS-Interface;
• Compatible motor models: SIMOGEAR;
• The degree of protection of the case: IP66.

Configuration of inputs/outputs of the SINAMICS G110M electric drive

• Analog input (can serve as a digital input, 10 V);
• 4 digital inputs (one parameterizable);
• 2 digital outputs.

Optional SINAMICS G110M electric drive modules

• 24 V power supply;
• Internal braking resistors;
• Connection kit (types M20, M15, M12);
• HanQ connection kit.

Nominal characteristics of the standard sizes of the Sinamics G110M converter

You can buy Siemens Sinamics G110M series converters on favorable terms, find out the price and more information about the product by contacting our specialists.
