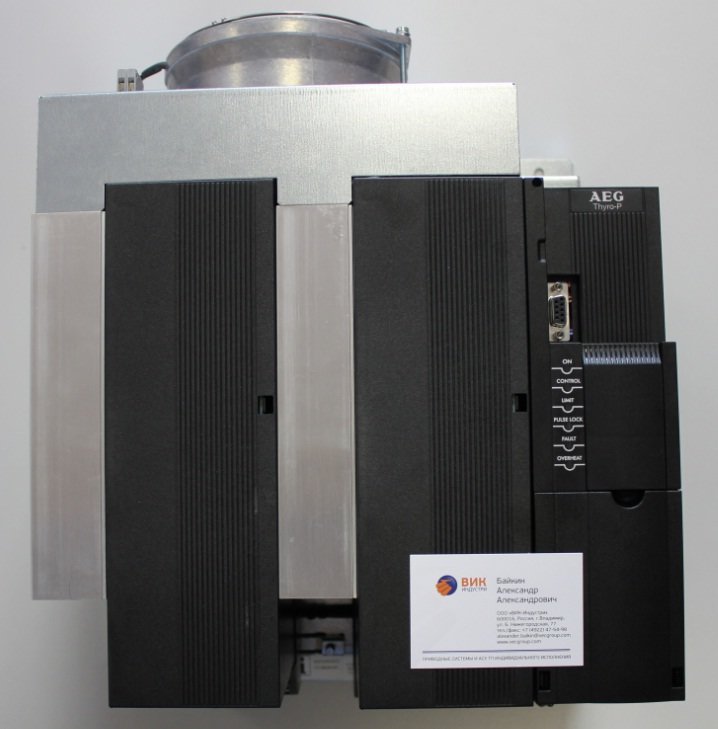

Digital thyristor power regulators of the family Thyro-P from the company AEG It is a reliable and multifunctional tool for precise control of the voltage, current and power of the application. In the arsenal of this drive, there is a patented synchronization function for several units of controllers to eliminate peak power values.

The Thyro-P series has a rated current up to 2900 A and the tension up to 690 V, easy to handle, ensures the most efficient and trouble-free operation. The most popular areas of application of the series are: glass production, chemical industry, printing presses, furniture industry, automotive industry, packaging equipment and many others.

The series is divided into three subgroups of drives:

THYRO-P 1P - single-phase controller, TAKT, VAR, SSSD

THYRO-P 2P - two-phase controller, TAKT, SSSD

THYRO-P 3P - three-phase controller, TAKT, VAR

Technical characteristics of AEG THYRO-P thyristor drives

Electric motor power: from 5.6 to 2868 kW;
Rated current: from 37 to 2900 A;
Supply voltage: 400, 500, 690 V;
Operating modes: TAKT, VAR, SSSD, MOSI;
6 LED status indicators;
A/D transformer sampling rate: 1.5 M/s;
Interfaces: RS232, fiber optic and bus connections;
Built-in semiconductor fuses;
Connection to SELF/PELF circuits;
Operating temperature range: 0... 40 °C;
Protection class IP20;
Built-in functions: automatic setting, program start, failure indication, error memory with time indication, load circuit monitoring, time counter, energy meter and others.

Optional modules

Control module with display (LBA) ;
Cabinet Mounting Kit (SEK);
Software;
Industrial interface connection module;
Module for automatic synchronization of multiple applications to optimize dynamic load;

Nominal characteristics of standard sizes of AEG THYRO-P drives

THYRO-P 1P	THYRO-P 2P	THYRO-P 3P	Voltage, V
Power, kW	Current, A	Power, kW	Current, A	Power, kW	Current, A
14,8	37	5,6	37	25,6	37	400
30	75	51,9	75	51,9	75
44	110	76,2	110	76,1	110
52	130	90	130	90	130
68	170	117	170	117	170
112	280	194	280	193	280
198	495	343	495	342	495
260	650	450	650	449	650
400	1000	693	1000	692	1000
600	1500	1039	1500	1038	1500
840	2100	1386	2000	1280	1850
1160	2900	1905	2750	1799	2600
18,5	37	32	37	32	37	500
37,5	75	65	75	65	75
55	110	95	110	95	110
65	130	112	130	112	130
85	170	147	170	147	170
140	280	242	280	242	280
247	495	428	495	428	495
325	650	562	650	562	650
500	1000	866	1000	866	1000
750	1500	1299	1500	1299	1500
1050	2100	1732	2000	1602	1850
1450	2900	2381	2750	2251	2600
55,2	80	95,6	80	95,6	80	690
138	200	239	200	239	200
207	300	358	300	358	300
345	500	597	500	597	500
538	780	932	780	932	780
966	1400	1673	1400	1673	1400
1380	2000	2210	1850	2031	1700
1794	2600	2868	2400	2629	2200
