Programming using graphical elements (567713)

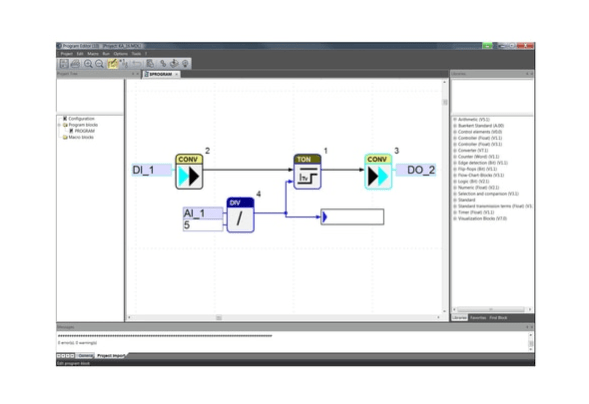

When using the free software tool "Communicator", various components of the EDIP system provide simple programming through a graphical user interface. Programming can be performed in the language of functional blocks with a focus on the data flow or in the form of flowcharts with a focus on the control system. At the same time, you can create logical connections, compare analog values, or program time intervals and chains of steps. The user interface is simple and has intuitive controls. In the software and in the output modules, the functions can be used with restrictions. After entering the code, these restrictions are lifted.
