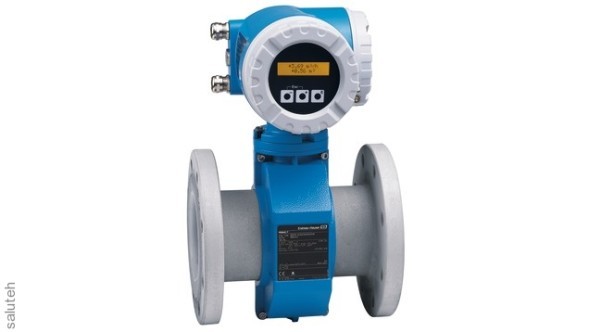

Promag P is the best sensor for high temperature processes in various industries. In combination with a proven push-button converter Promag 50, flow meter Promag50P provides high-precision measurement of liquids in a wide range of applications. Promag 50P It is used in chemical and technological processes for measuring highly corrosive liquids with high operating temperatures. Promag 50P It is available in a compact and separate design.
Specifications:
Measurement principles Electromagnetic flowmeters Main functions Standard flow measurement in chemical industry processes
Specifications
The S-DAT module
Self-diagnosis function
Quick setup with the "Quick SetUp" menu
Monitoring of the measured environment
ETC
2 adders
Bullet-shaped electrodes
Converter Features Quick commissioning – quick setup, specialized for a specific application. Safe operation - easy-to-read information about the process is displayed on the display. Full compliance with industrial requirements – IEC/EN/NAMUR. 2-line display with backlight and push-button control. Compact and separate versions of the device are available.
Diameter DN 15...600
Measurement error ±0.5%
±0.2% (optional)
The measurement range is 0...9'600 m3/h
Operating pressure range PN10...40
Cl 150...300
He 10...20K
AS 2129 Table E
AS 4087 PN16
The operating temperature is 40...+180°C
The ambient temperature range is 20...+60°C
-40...+60°C (optional)
Degree of protection of electronics IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Display/Setting 2X-line with backlit display
Control keys
Output wave4...20 mA Pulse/Frequency Status Signal
Input signals Status signal
Communication of the Heart
PROFIBUS PA
Explosion protection certificates
FM
CSA
TIIS
