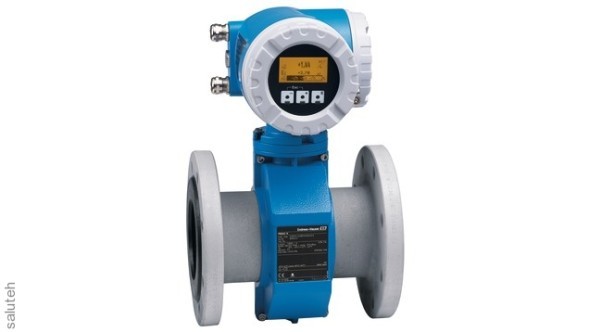

Electromagnetic flowmeter Proline Promag 53W 53W1F-CLGB5A52SXXX

Promag W is a sensor specialized for all applications in the water industry. In combination with the Promag 53 sensor converter with touch control, a 4-line display with advanced functionality including software options for filling and dosing, electrode cleaning functions and advanced diagnostics, Promag 53W provides the highest measurement accuracy when performing the most complex measuring tasks. The Promag 53W is available in a compact and separate design.

Advantages

• Safe and reliable long-term operation - durable fully welded sensor
• Energy–efficient flow measurement - no pressure loss due to the straight-forward sensor design
• No moving parts - no maintenance required
• Quality - filling and dosing software, density calculations, electrode cleaning functions and advanced diagnostics
• Simple calculation - Bidirectional flow adders
• Automatic data recovery for easy maintenance

Scope of application

• The measurement principle is not affected by process parameters such as pressure, density, temperature and viscosity
• For the most demanding applications in water treatment and wastewater treatment.

Device Characteristics

• Certificate for use with drinking water
• Protection class: IP68 (Type 6P enclosure)
• Certified for commercial accounting according to MI-001/OIML R49
• 4-line backlit display with touch control
• Compact and separate design
• HART, PROFIBUS PA/DP,Modbus RS485, FF, EtherNet/IP

Features and Specifications

Liquids

Principle of measurement	Electromagnetic flow meters
Main functions	High-precision flow measurement in water treatment, water supply and sanitation processes
Specifications	S-DAT, T-DAT F-CHIP modules Self-diagnosis Quick setup with the "Quick SetUp" menu ETC 3 adders Bullet-shaped electrodes Bidirectional flow adder Pulsating flow measurement Calculation of the density of the measured medium Calculating the mass flow rate Dosage control
Converter Features	Quality – software for filling and dosing, density, cleaning of electrodes, as well as in-depth diagnostics. Easy calculation – adders for bidirectional flow. Automatic data extraction for maintenance. 4-line display with backlight and touch control. Compact and separate versions of the device are available.
Diameter	DN 25...2000
Measurement error	±0.2%
Measuring range	0...110'000 m3/h
Operating pressure range	PN6...40 Cl 150...300 He 10...20K AWWA Class D AS 2129 Table E AS 4087 PN16
Operating temperature	-20...+80°C
Ambient temperature range	-20...+60 °C -40...+60 °C (optional)
Degree of protection of electronics	IP 67 (NEMA 4x) IP 68 (Nema 6P)
Display/Customization	4-line backlit display Touch control
Output signals	4...20 mA Pulse-frequency (active/passive) Relay Status signal
Input signals	Status signal Current input
Communication	HART PROFIBUS PA Profibus DP FOUNDATION Fieldbus
Explosion protection certificates	ATEX FM CSA
