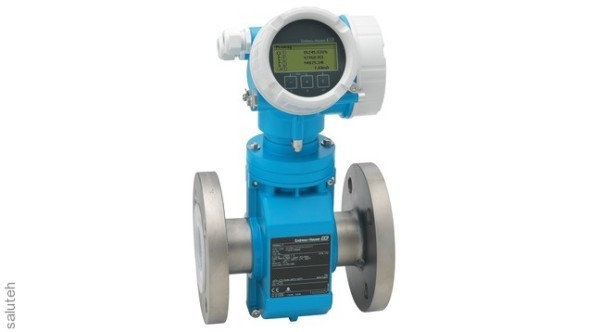

In Promag P 200 Additionally, a unique two-wire technology is used that meets industrial standards. This allows the device to be integrated into existing infrastructure and control systems. An additional advantage is the safety of use in hazardous areas due to the intrinsically safe design of the electronics of the device and the simple installation procedure. Promag P 200 It is designed for use in chemical and technological processes with highly corrosive liquids and high ambient temperatures.
Advantages
- Universal application - a wide range of wettable materials
- Energy-saving flow measurement - full-bore cross section of the sensor part prevents pressure loss
- Convenient connection of the device - a separate compartment for connections
- Safe operation - thanks to the touch screen and backlight, there is no need to open the device
- Maintenance–free - no moving parts
- Built–in verification - Heartbeat Technology™
Scope of application
- The measurement principle is practically unaffected by process parameters such as pressure, density, temperature and viscosity
- Designed to measure corrosive media at high temperatures in chemical and general industrial processes.
Device Characteristics
- Nominal diameter: max. DN 200 (8")
- All generally accepted explosion protection certificates
- PTFE or PFA lining
- Signal circuit power technology
- Durable two-chamber housing
- Enterprise safety: international certificates (SIL, explosive zones)
Features and Specifications
Liquids
| Principle of measurement | Electromagnetic flow meters | |
| Main functions | Flow meter
for maximum operating temperatures with original power technology
by the signal circuit. It is used in chemical and technological
processes with corrosive liquids and at high operating temperatures. | |
| Specifications | Universal
applicability – a wide variety of wettable materials.
Energy–saving flow measurement - no pressure loss
due to the narrowing of the cross section. No moving parts,
no maintenance required. Nominal diameter up to DN 200 (8"). Are
all common certificates for explosion-proof design. | |
| Converter Features | Convenient
electrical connection of the device is a separate terminal compartment.
Safe operation – no need to open the device thanks to
touch screen and backlight. Built–in verification technology
Heartbeat Technology™. The power supply function is based on a signal circuit. Durable
two-chamber housing. | |
| Diameter | DN 15 ... 200 (½... 8") | |
| Wetted materials | Lining: PFA; PTFE Electrodes: 1.4435 (316L); Alloy Alloy C22, 2.4602 (UNS N06022); tantalum; platinum | |
| Measured parameters | Volume flow, mass flow | |
| Measurement error | Volumetric flow rate ±0.5% ISM ± 2 mm/s (0.08 in/s) | |
| Measuring range | 4 dm3/min... 1100 m3/h (1...4850 gal/min) | |
| Operating pressure range | PN 40, class 300, 20K | |
| Operating temperature | PFA lining material: -20...+150 °C (–4...+302 °F) PTFE lining material: -40...+130 °C (-40...+266 °F) | |
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) | |
| Sensor housing material | AlSi10Mg, coated | |
| Converter housing material | AlSi10Mg, coated | |
| Degree of protection of electronics | IP66/67, type 4X protective shell | |
| Display/Customization | 4‐line backlit touch screen (outdoor control) Setting via the local display and control software It is possible to use a remote display | |
| Output signals | 4...20 mA HART (passive) Pulse/Frequency/Relay output (passive) | |
| Input signals | None | |
| Communication | HART, PROFIBUS PA, FOUNDATION Fieldbus | |
| Power supply | DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) | |
| Explosion protection certificates | ATEX, IECEx, cCSAus | |
| Other certificates and regulations |
| |
| Product safety | CE, C-Tick | |
| Functional safety | Functional safety | |
| Metrological standards and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation) | |
| Pressure certificates and standards | CRN, PED | |
| Certificates for materials | 3.1 material | |
Features
Working environment
Жидкость
Power Supply, In
~ 400V AC
Brand
Endress Hauser
