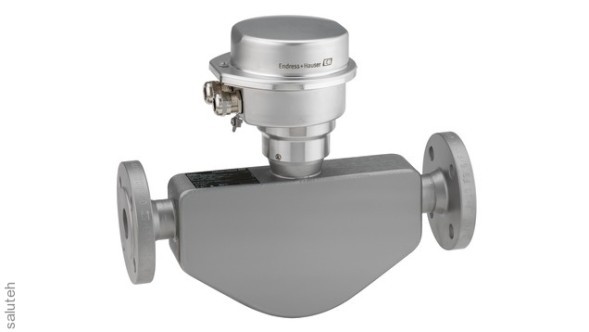

Behind Promass E The reputation of a low cost of ownership technology metering device has been established. In combination with the most compact converter housing available today, the flow meter is characterized by high performance with small dimensions. Promass E 100 It is specially designed for use in areas where its small size is important, and is optimally suited for system integrators, manufacturers of modular and complete equipment. A version with an ultra-compact hygienic stainless steel housing is available and can be placed even on the most compact stands.
Advantages
- Cost–effectiveness - a multi-purpose device; an alternative to volumetric flow meters
- Fewer process measurement points – multiparametric measurement (flow rate, density, temperature)
- Easy installation – no straight sections are required before and after the flow meter
- Compact converter – full functionality with small dimensions
- Quick setup without additional software and hardware – built-in web server
- Built–in function for self-verification and diagnostics - Heartbeat Technology
Scope of application
- The coriolis flow measurement principle does not depend on such physical properties of the liquid as viscosity and density.
- High-precision flow measurement of liquids and gases in a wide range of standard applications.
Device Characteristics
- Compact sensor with two measuring tubes
- The operating temperature of the liquid is up to +140 °C
- Working pressure: up to 100 bar
- Robust, ultra-compact converter housing
- High class of protective performance: IP69K
- A local display is available
Features and Specifications
| Principle of measurement | Coriolis flow meters | |
| Main functions | Minimized cost of ownership.
An alternative to traditional volumetric flow meters is in an ultra-compact design. | |
| Specifications | Cost
–effectiveness is a universal device; an alternative to traditional
volumetric flow sensors. Fewer measuring points in the process –
multiparametric measurement (flow rate, density, temperature).
Compact installation – no direct input and output
sections are required. Compact two-tube sensor. The ambient temperature is up to +140 °C. | |
| Converter Features | Full functionality of the coriolios flow meter with an ultra-compact housing design. | |
| Diameter | DN 8...80 | |
| Wetted materials | Measuring tube: 1.4539 (904L) Process connection: 1.4404 (316/316L) | |
| Measured parameters | Mass flow, density, temperature, volume flow, reduced volume flow, reference density, concentration | |
| Measurement error | Mass flow rate (liquid): ±0.15 % Volumetric flow rate (liquid): ±0.15 % Mass flow rate (gas): ±0.75 % Density (liquid): ±0.0005 g/cm3 | |
| Measuring range | 0...180'000 kg/h | |
| Operating pressure range | PN 100, Class 600, 63K | |
| Operating temperature | -40...+140 °C | |
| Ambient temperature range | Standard version: -40...+60 °C Option: -50...+60 °C | |
| Sensor housing material | 1.4301 (304), corrosion resistant | |
| Converter housing material | Compact: AlSi10Mg Ultra compact: 1.4301 (304), 1.4404 (316L) | |
| Degree of protection of electronics | Standard version: IP66/67, type 4X Option: IP69K | |
| Display/Customization | Built-in web server for quick commissioning | |
| Output signals | 4-20 mA HART (active) Pulse/Frequency/Discrete (passive) | |
| Input signals | - | |
| Communication | HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET | |
| Power supply | 20 ... 30 In the post. current | |
| Explosion protection certificates | ATEX, IECEx, cCSAus, INMETRO, NEPSI | |
| Product safety | CE, C-Tick, EAC marking | |
| Metrological standards and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV Attestation) | |
| Marine approvals and certificates | ABS (American Bureau of Shipping) BV (Bureau Veritas) LR (Lloyds Register) | |
| Pressure certificates and standards | PED, CRN | |
| Certificates for materials | 3.1 material | |
| Hygiene certificates and standards | 3-A | |
Features
Working environment
Газ
Power Supply, In
~ 400V AC
Dimensions, mm
970*560*720
Brand
Endress Hauser
