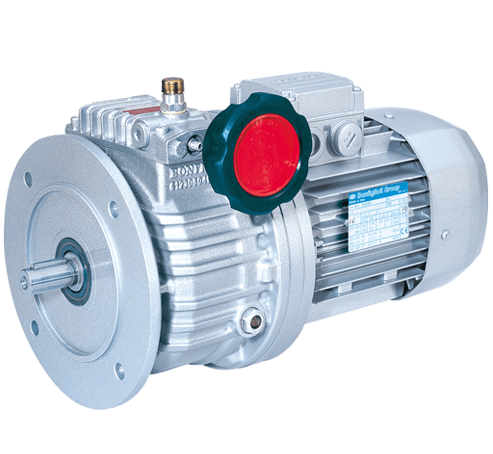

Company Bonfiglioli represents the ruler mechanical variators of the V series with an innovative speed control system. The updated mechanism allows for the smoothest possible operation, while maintaining a comfortable temperature regime. This design optimization guarantees reliable operation and a long service life of the wear-prone components of the device.
In the catalog you can get acquainted with the proposed variations of mounting solutions and a wide selection of fasteners for the integration of the drive into production.
The series is divided into four subgroups:
V - basic range of standard sizes
CEO - differential version of the execution
VR - version with an additional cylindrical gearbox
VRD - a combined version of the differential mechanism and an integrated gearbox with gears.
Technical characteristics of Bonfiglioli V series mechanical variator motors
- Gear ratio: 1 - 5,5;
- Additional reduction: 2,5 - 6,3;
- Rated torque: 1 - 680 Nm;
- Motor power: 0.12 - 9.2 kW;
- Speed (at the entrance): 900 - 2800 rpm;
- Speed (output): 0 - 2000 rpm.
Standard sizes of Bonfiglioli variators of the V series
Type of gearbox | Nom. speed, rpm | Power (motor), kW | Nom. moment, Nm |
V 0.25 | 125 - 1820 | 0,12 - 0,37 | 1,0 - 4,0 |
V 0.5 | 125 - 2000 | 0,25 - 1,5 | 2,0 - 8,0 |
V 1 | 125 - 2000 | 0,55 - 1,5 | 4,5 - 16 |
V 2 | 125 - 1000 | 1,1 - 1,5 | 12 - 35 |
V 3 | 125 - 1000 | 2,2 - 3,0 | 16 - 56 |
V 5.5 | 190 - 1000 | 4,0 | 32 - 72 |
V 10 | 1900 - 1000 | 4,0 - 9,2 | 43 - 144 |
VD 0.5 | 0 - 2000 | 0,25 – 0,75 | 2,0 – 8,0 |
VD 1 | 0 - 2000 | 0,55 – 1,5 | 4,5 – 16,0 |
VD 2 | 0 - 1000 | 1,1 - 1,8 | 12 - 35 |
VD 3 | 0 - 1000 | 2,2 - 3,0 | 16 - 56 |
VD 5.5 | 0 - 1000 | 4,0 | 32 - 72 |
VD 10 | 0 - 1000 | 4,0 - 9,2 | 43 - 144 |
VR 0.25 | 19,8 - 734 | 0,12 - 0,37 | 2,4 - 24 |
VR 0.5 | 19,8 - 806 | 0,25 - 0,75 | 4,9 - 40 |
VR 1 | 19,5 - 826 | 0,55 - 1,5 | 10,7 - 70 |
VR 2 | 19,0 - 423 | 1,1 - 1,8 | 21 - 150 |
VR 3 | 19,5 - 424 | 2,2 - 3,0 | 37 - 300 |
VR 5.5 | 29,7 - 424 | 4,0 | 74 - 280 |
VR 10 | 0 - 526 | 4,0 - 9,2 | 80 - 680 |
VRD 0.25 | 0 - 734 | 0,12 - 0,37 | 2,4 - 24 |
VRD 0.5 | 0 - 806 | 0,25 - 0,75 | 4,9 - 40 |
VRD 1 | 0 - 826 | 0,55 - 1,5 | 10,7 - 70 |
VRD 2 | 0 - 423 | 1,1 - 1,8 | 21 - 150 |
VRD 3 | 0 - 424 | 2,2 - 3,0 | 37 - 300 |
VRD 5.5 | 0 - 424 | 4,0 | 74 - 280 |
VRD 10 | 0 - 526 | 4,0 - 9,2 | 80 - 680 |
Buy variator motors Bonfiglioli V series, you can find out the price and more information about the product by contacting our specialists.
