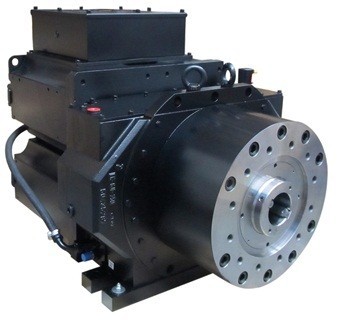

Gear motors Knodler CMG This is a series of compact drive mechanisms for working with extruders and injection molding machines. Model range CMG 05 - CMG 601 It has a wide torque range from 500 to 150,000 Nm. High productivity, despite its modest dimensions, is an ideal solution not only for the plastic industry, but also for equipment in other areas (mixers, agitators, ball mills, grinders, etc.)
The CMG gear motor consists of two subassemblies, sections of the motor and gearbox. Various types of output shaft designs are available. The motor section accommodates 4th three-phase electric motor Located around the central cavity, each of their gears is mechanically connected to a common drive gear, in order to avoid transverse forces on the bearing and reduce noise levels. The total power from the shaft is distributed evenly. Such modular use of removable electric motors is very convenient to maintain, increases the service life and reliability of operation, allows you to work in emergency mode in case of failure of one unit or with reduced productivity during repair.
The gears have oblique spikes and a cylindrical shape. Available as a single-stage or two-stage transmission. Standard version with hollow output shaft. A water cooling system through a coil is integrated into all models, and a plate heat exchanger can be installed for even greater efficiency. The cooling circuit can be controlled by KTY temperature sensors, which allows you to control the flow rate of the cooler within the required limits and avoid condensation of moisture on a cooled engine. Encoders for speed control are installed optionally.
Technical characteristics of Knoedler CMG 05 - CMG 601 gear motors:
- Rated output torque: 500 – 150,000 Nm;
- Reduction coefficient: 2,5 - 29;
- Power: 6 – 1000 kW;
- Number of steps: 1, 2;
- Rated engine data: 400 V /50 Hz /1500 rpm;
- Working with a frequency converter: 400 V /87 Hz /2600 rpm.
Standard sizes of Knoedler gearboxes of the CMG series
Type of gearbox | Power 50 Hz /87 Hz, kW | Nom. moment, 50 Hz /87 Hz, Nm | Max. moment, 1 art. /2 art., Nm |
| CMG 05 | 6 /10,5 | 40 /35 | 500 /1200 |
| CMG 10 | 18 /27 | 120 /105 | 1500 /3000 |
| CMG 20 | 22 /33 | 148 /127 | 3000 /4000 |
| CMG 31 | 60 /90 | 392 /338 | 4000 /8000 |
| CMG 61 | 88 /132 | 576 /496 | 8000 /16000 |
| CMG 121 | 147 /221 | 964 /830 | 15000 /30000 |
| CMG 241 | 256 /384 | 1660 /1430 | 20000 /48000 |
| CMG 401 | 440 /660 | 2830 /2440 | 28000 /68000 |
| CMG 601 | 1000 /- | 6440 /- | 60000 /150000 |
You can buy gear motors for Knoedler extruders and injection molding machines of the CMG series, find out the price and more information about the products of this brand by contacting our specialists.
