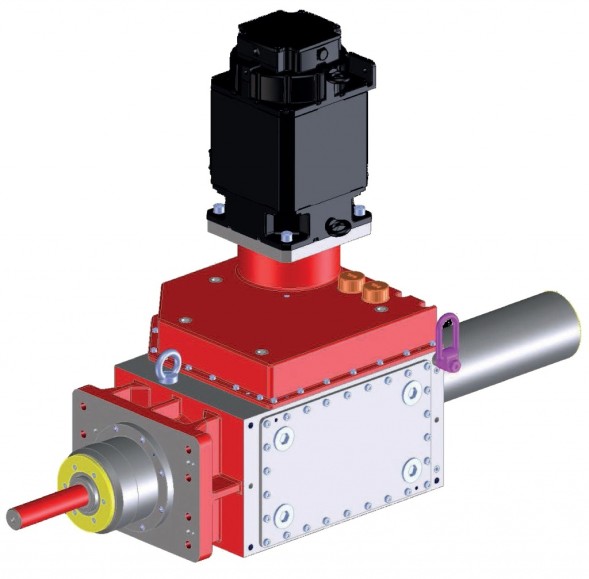

Knoedler ZS-C clamping device drive It is used to work on injection molding machines with power supply. The design includes toothed rails, which are more efficient and low noise than the ball screw gears that preceded them. Synchronous servomotors with 2- or 4-fold gears provide high levels of power density and dynamic response.
To adjust the length of the structure, despite the large step, a solution was developed in the form of adjustable telescopic bushings. This movable configuration allows for adjustment depending on the required stroke.
There are two options for the location of the drive with regard to the entire installation: side and top. All drives, from ZS 81.2-C onwards, have a built-in water coil heat exchanger. For ease of installation, all standard mounting options are available according to IEC. An optional additional meter can be installed to monitor the oil temperature.
Technical characteristics of Knoedler ZS-C clamping device drives:
- Maximum effort: 25 – 370 kN;
- Pitch (+/- 10 mm): 235 – 975 mm;
- Speed: 1 m/s.
Standard sizes of Knoedler ZS-C clamping device drives
Type of drive | Max. effort, kN | Step, mm |
ZS 25.2-C | 25 | 235 |
ZS 40.2-C | 40 | 355 |
ZS 60.2-C | 60 | 455 |
ZS 81.2-C | 80 | 500 |
ZS 141.2-C | 105 | 565 |
ZS 201.2-C | 140 | 615 |
ZS 281.3-C | 210 | 615 |
ZS 401.3-C | 285 | 795 |
ZS 551.3-C | 370 | 975 |
You can buy drives for clamping devices of Knoedler ZS-C injection molding machines, find out the price and more information about the products of this brand by contacting our specialists.
