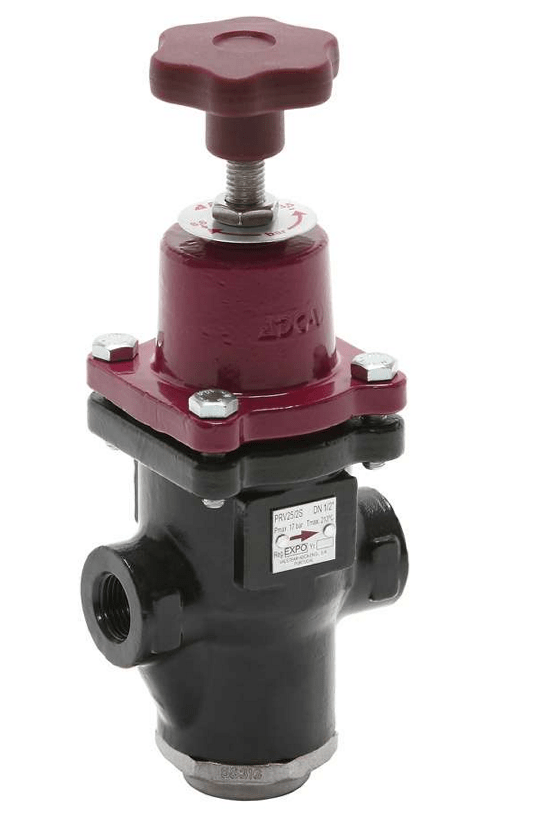

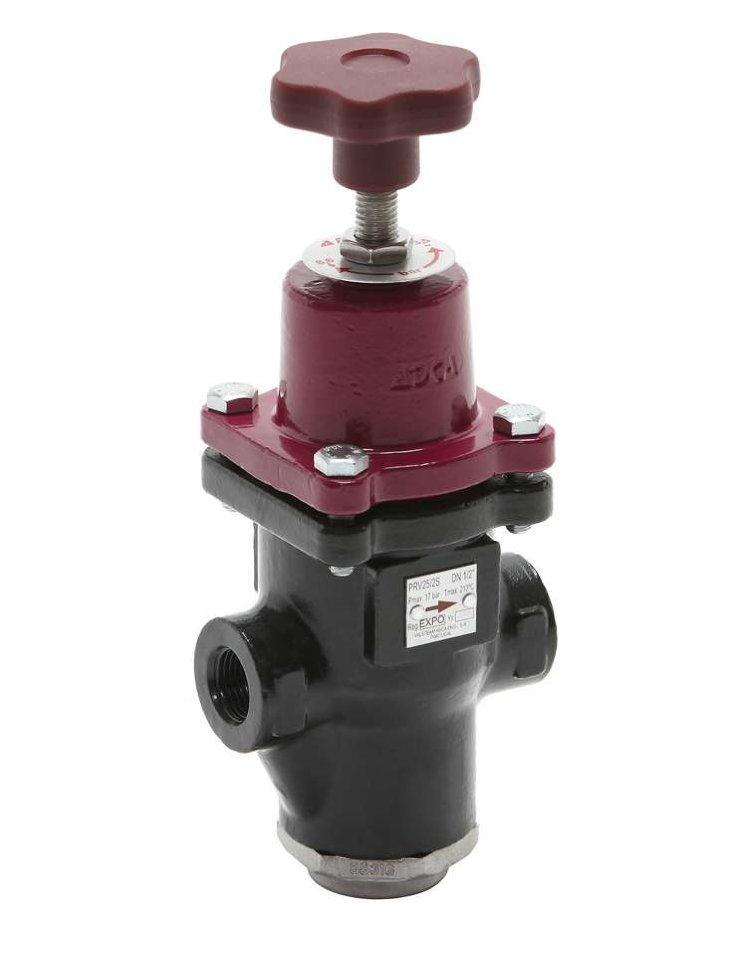

Pressure reducing valve PRV25/2S-02-25 DN25 dP=1,4-4,0 with green spring PN25 (n, cj, v) r/r

Pressure reducing valve Adca series PRV25/2S, upl: P250GH/GJS-400-15, dP=0.14-1.7 for steam

ADCA PRV25/2S - the direct-acting pressure reducing valve is designed to operate in working environments such as steam, compressed air and other non-aggressive gases. Designed for use in systems such as digesters, sterilizers, dyeing and laundry equipment, etc. A specially designed durable bellows is used in the valve. Equipped with a built-in filter.

Working environment:
water vapor, water, compressed air, and other non-aggressive liquids and gases

Execution:

• PRV25/2S – metal-on-metal seat seal
• PRV25/2SG – soft seat seal
• PRW25/2S – soft seat seal, pressure balanced

Application:

• PRV25/2S – water vapor, compressed air
• PRV25/2SG – water vapor, compressed air, systems with increased requirements for the tightness of the valve seat
• PRW25/2S – water, compressed air

Installation: on a horizontal pipeline; before the valve, it is mandatory to install a filter, a separator with condensate drainage
