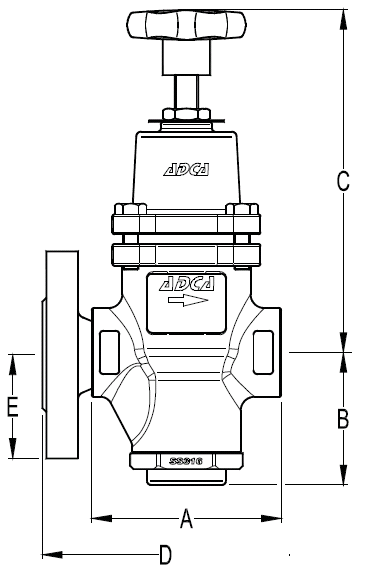

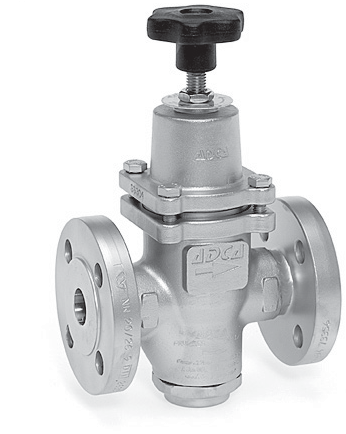

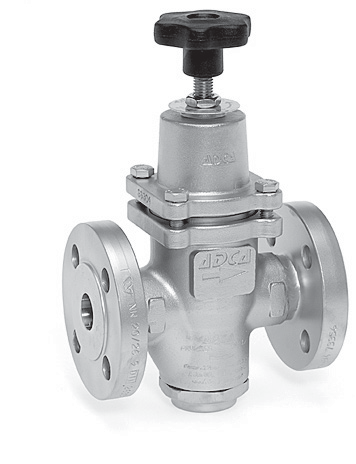

Pressure reducing valve PRW25I PN25 f/f for water (DN20 dP=3.5-8.6 stainless steelsteel with red spring)

Pressure reducing valve Adca series PRW25I Pressure reducing valve Adca PN25 f/f for water

ADCA PRV25I - the direct-acting pressure reducing valve is designed to operate in working environments such as steam, compressed air and other non-aggressive gases. Designed for use in systems such as digesters, sterilizers, dyeing and laundry equipment, etc. A specially designed durable bellows is used in the valve. Equipped with a built-in filter.

Working environment:
water vapor, water, compressed air, and other non-aggressive liquids and gases

Execution:

• PRV25/2S – metal-on-metal seat seal
• PRV25/2SG – soft seat seal
• PRW25/2S – soft seat seal, pressure balanced

Application:

• PRV25/2S – water vapor, compressed air
• PRV25/2SG – water vapor, compressed air, systems with high requirements
