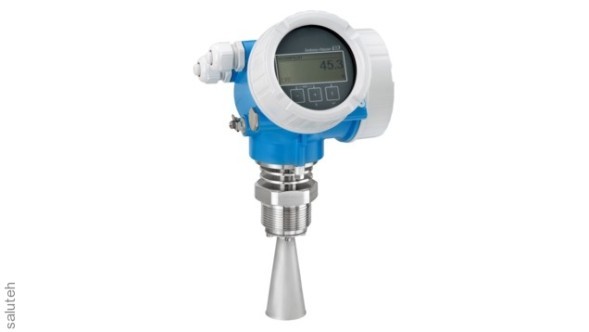

Micropilot FMR62 It is suitable for level measurement even in extreme operating conditions, for example, at high temperature and high pressure in the oil and gas and chemical industries. FMR51 provides maximum reliability thanks to the patented innovative sensor surface design.Level gauge Micropilot The FMR52 is designed for continuous non-contact level measurement of liquids, pastes and pulps. The measurement process is not affected by changes in the medium, temperature, or the presence of gas or steam layers.
Specifications:
| Principle of measurement | Radar measurement principle | |
| Specifications/Application | Non-contact radar level gauge for liquid products; Horn antennas for extreme application conditions Antenna diameter: 40...100 mm | |
| Additional information | Functional safety SIL 2(IEC 61508) Multi-Echo Tracking Echo Processing Function HistoROM Data Storage Module | |
| Food /Communication | 2x-wire connection (HART /PROFIBUS PA/FOUNDATION Fieldbus) 4-wire connection (HART) | |
| Frequency | ~26 GHz | |
| Error rate | +/- 2 mm | |
| Ambient temperature | -40...+80 °C | |
| Operating temperature | -196...+450 °C | |
| Operating pressure abs. /max. overpressure limit | The vacuum...160 bar | |
| Wetted parts | 316L, Alloy C, PTFE, Ceramic | |
| Joining the process | Threaded: MNPT 1 1/2, R 1 1/2 Flanged: DN50...DN150, ASME 2"...6", JIS 10K, 63K | |
| Hygienic connection to the process | Tri-Clamp ISO2852 | |
| Max. measurement value | Standard: 40 m (131 ft) With enhanced dynamics: 70 m (229 ft) | |
 |  | |
| Exit | 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus | |
| Certificates/Standards | ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, KC | |
| Safety approvals | Overfill prevention WHG SIL | |
| Certificate of construction | EN 10204-3.1 NACE MR0175, MR0103 ASME B31.3 AD2000 | |
| Marine Certificate | GL/ABS/LR/BV/DNV | |
| Options | Local display Custom paremetrization Gas tight seal Antenna Extension Cable Silicone and Grease Cleaning (PWIS) | |
| Application range | The maximum measurement range depends on the shape of the tank and/or its application The ammonia gas phase: FMR54 in the sedative tube Intensive sediment formation: FMR54 with compressed air purge function 316L or Alloy C unstable: FMR50, FMR52, FMR53 Sanitary and hygienic requirements: MR52, FMR53 Measurement in the commercial accounting mode: FMR5xx | |
Features
Power Supply, In
~ 400V AC
Brand
Endress Hauser
