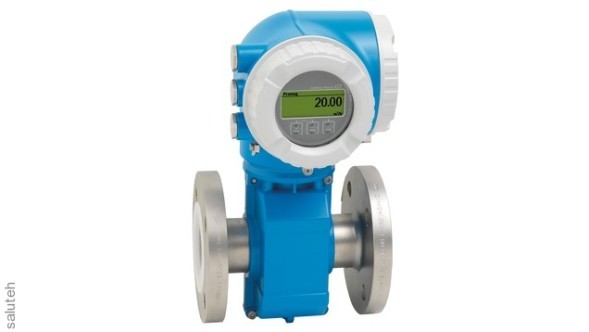

Electromagnetic flow Promag P 300, 5P3B50, DN50 2" 5P3B50-GRIBAAAFAAAD5S0AA1+AIZ1
Flow meter for maximum operating temperatures with convenient access to the electronics of a compact converter
Promag P is used in chemical and general industrial processes with corrosive liquids and at the highest possible operating temperatures. Complete with a compact converter, the Promag P 300 provides high flexibility in terms of operation and system integration: convenient access to the converter electronics, a remote display and improved connectivity. Heartbeat technology continuously ensures compliance with standards and process safety.
Advantages
- Universal application - a wide variety of wettable materials
- Energy-saving flow measurement - due to the full-bore design, there is no pressure loss
- Maintenance–free - no moving parts
- Full access to process and diagnostic information – a variety of I/O and fieldbus options with flexible compatibility
- Simplified system and variety – freely configurable I/O functionality
- Built–in function for self-verification and diagnostics - Heartbeat technology
Scope of application
- The bi-directional measurement principle is practically unaffected by process parameters such as pressure, density, temperature and viscosity
- Designed to measure corrosive media at high temperatures in chemical and general industrial processes
Device Characteristics
- Nominal diameter: max. DN 600 (24")
- Explosion protection certificates
- PTFE or PFA lining
- Compact housing with two compartments, up to 3 I/O devices
- Touch screen with backlight and remote access via WLAN
- A remote display is available
Features and Specifications
• Liquids
• The principle of measurement
Electromagnetic flow meters
• Title for the product
A flow meter for maximum operating temperatures with convenient access to the electronics of a compact converter. It is used in chemical and technological processes with corrosive liquids and at high operating temperatures.
• Sensor functions
Diverse applications - a wide range of wettable materials. Energy–saving flow measurement - there is no pressure loss due to the full-bore cross-section design. No need for maintenance due to the lack of moving parts. Nominal diameter: max. DN 600 (24"). All common certificates for explosion-proof design are available.
• Converter Features
Full access to process and diagnostic information – a wide range of arbitrarily combined I/O devices and digital buses. Simplification and diversity – freely configurable I/O functionality. Built–in verification functions - Heartbeat technology. Compact housing with two compartments, up to 3 I/O devices. Touch screen with backlight and support for WLAN connection.
• Range of nominal diameters
DN 15...600 (½...24")
• Wetted materials
Lining: PFA; PTFE
Электроды: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); тантал; платина; титан; Duplex 1.4462 (UNS S31803)
• Measured parameters
Volume flow, conductivity, mass flow
• Max. measurement error
Volumetric flow rate (standard version): ±0.5% ISM ± 1 mm/s (0.04 in/s)
Volumetric flow rate (optional) ±0.2% ISM ± 2 mm/s (0.08 in/s)
• Measuring range
4 dm3/min...9600 m3/h (1...44000 gal/min)
• Max. working pressure
PN 40, class 300, 20K
• Product temperature range
PFA lining material: -20...+150 °C (–4...+302 °F)
Lining material PFA, high temperature: -20...+180 °C (-4...+356 °F)
PTFE lining material: -40...+130 °C (-40...+266 °F)
• Ambient temperature range
Flange material – carbon steel: -10...+60 °C (+14...+140 °F)
Flange material – stainless steel: -40...+60 °C (-40...+140 °F)
• Sensor housing material
DN 15...300 (½...12""): AlSi10Mg, coated
DN 350...600 (14...24"): carbon steel with protective varnish
• Converter housing material
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for the transducer in hygienic design
• Degree of protection
Standard version: IP66/67, type 4X protective shell
Option: IP69
• Display/Customization
4‐line backlit touch screen (outdoor control)
Configuration via local display and control software
A remote display is available
• Output signals
3 outputs:
4...20 mA HART (active/passive)
4...20 more WirelessHART
4 .. 20 mA (active/passive)
Pulse/Frequency/Relay output (active/passive)
Dual pulse output (active/passive)
Relay output
• Input signals
Status input signal
Input 4...20 mA
• Digital communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
• Power supply
24 In the post. current
100...230 Vac. current
100...230 Vac. current /24 VDC. current (safe zone)
• Explosion protection certificates
ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
• Product safety
CE, C-tick, EAC marking
• Functional safety
Functional safety according to GOST R IEC 61508, the possibility of application for safety according to GOST R IEC 61511
• Metrological standards and certificates
The Heartbeat Technology function meets the requirements for traceable verification according to ISO 9001:2008, Section 7.6. a (TÜV certification)
• Marine certificates and regulations
LR Certificate, DNV GL Certificate, ABS Certificate, LH/BV Certificate
• Pressure certificates and standards
PED, CRN
• Certificates for materials
Material 3.1, calibration was performed on certified calibration equipment (complies with ISO/IEC 17025), NAMUR
• Hygiene certificates and standards
ACS, NSF 61
Promag P is used in chemical and general industrial processes with corrosive liquids and at the highest possible operating temperatures. Complete with a compact converter Promag P 300 It has high flexibility in terms of operation and system integration: convenient access to the converter electronics, a remote display and improved connectivity. Heartbeat technology continuously ensures compliance with standards and process safety.
Advantages
- Universal application - a wide variety of wettable materials
- Energy-saving flow measurement - due to the full-bore design, there is no pressure loss
- Maintenance–free - no moving parts
- Full access to process and diagnostic information – numeric data, freely compatible I/O devices and digital buses
