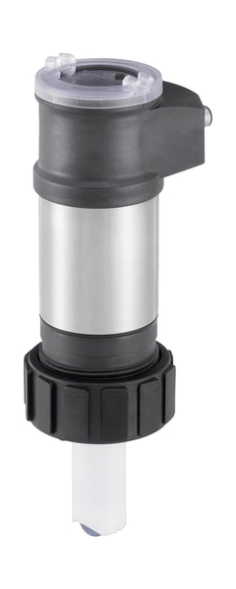

INSERTION flowmeter with impeller, ELEMENT series (560871)

The Type 8026 flowmeter is a compact device specially designed for measuring the flow of liquids that do not contain solid particles in various applications (water and wastewater quality control, chemical processes, etc.). Type 8026 is available in the following versions: - 2 configurable outputs: one transistor output (NPN) and one current output for 4...20 mA (2-wire); - 3 configurable outputs: two transistor outputs (NPN/PNP) and one current output for 4...20 mA (2-wire); - 4 configurable outputs: two transistor outputs (NPN/PNP) and two current outputs for 4...20 mA (3-wire). The Type 8026 converts the measured signal, displays different values in different units of measurement (if a display/configurator is installed) and calculates the output signals transmitted via one or two M12 cable connectors. Due to the presence of one or two transistor outputs, the flowmeter can be used to turn on an electric valve, trigger an alarm signal, and thanks to one or two current outputs, to create one or two control circuits.
