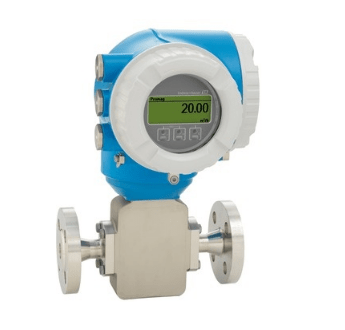

Consumption promag H 300 5H3B04-GRIBAEHFAABI2S0BA2+AIEBLA

Promag H 300 5H3B50 release-GRIRAEAFAAFDCS0BA1+AI

Promag H is the best sensor for hygienic applications under the strict requirements of the food and pharmaceutical industry. Complete with a compact converter Promag H 300 It has high flexibility in terms of operation and system integration: convenient access to the converter electronics, a remote display and improved connectivity. Heartbeat technology continuously ensures compliance with standards and process safety.

A specialized flow meter for hygienic applications with convenient access to the electronics of a compact converter

Advantages

• Flexible installation - several options for hygienic process connections
• Energy-saving flow measurement - due to the full-bore design, there is no pressure loss
• Maintenance–free - no moving parts
• Full access to process and diagnostic information – numeric data, freely configurable I/O and digital buses
• Simplified system and variety – freely configurable I/O functionality
• Built–in function for self-verification and diagnostics - Heartbeat technology

Scope of application

• The bi-directional measurement principle is practically unaffected by process parameters such as pressure, density, temperature and viscosity
• For demanding applications in the food and pharmaceutical industries.

Device Characteristics

• Lining made of PFA
• Stainless steel housing (3-A, EHEDG)
• CIP-, SIP-cleaning of wetted materials
• Compact housing with two compartments, up to 3 I/O devices
• Touch screen with backlight and remote access via WLAN
• A remote display is available
