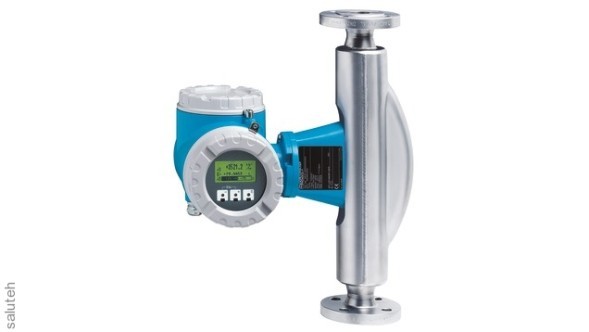

Promass F is known as a reliable device capable of measuring several parameters simultaneously. The flow meter is suitable for a wide variety of applications. In combination with the proven push-button converter 80 flow meter Promass 80F provides the highest accuracy of flow measurements of liquids and gases in difficult process conditions.
Advantages
- The modular design makes it possible to increase the efficiency of using the flow meter.
- Vibration immunity due to the balance of the two-tube measuring system
- Resistance to external influences due to its robust construction
- Simple installation procedure without the need for input or output straight sections
Scope of application
The coriolis flow measurement principle does not depend on such physical properties of the liquid as viscosity and density.
- High-precision measurement of liquid and gas flow, e.g. petroleum products, lubricants, combustible materials, liquefied gas, solvents, foodstuffs and compressed natural gas (CNG)
- The operating temperature of the liquid is up to +350 °C
- Operating pressure up to 100 bar
- Measurement of mass flow rate up to 2200 t/h
Certificates for explosion-proof use:
- ATEX, FM, CSA, TIIS
Features and Specifications
Liquids
| Principle of measurement | Coriolis flow meters | |
| Main functions | Universal multiparameter flow meter for liquid and gas | |
| Specifications | The S-DAT module Self-diagnosis function Quick Setup Menu 1 Adder | |
| Converter Features | Cost-effectiveness
— Design designed for standard applications Safe
operation — easy-to-read process information is displayed on the display.
Full compliance with industrial requirements —IEC/EN/NAMUR. 2-line
display with backlight and push-button control.
Compact and separate versions of the device are available. | |
| Diameter | DN 8...250 | |
| Wetted materials | Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) | |
| Measured parameters | Mass flow, density, temperature, volume flow, adjusted volume flow, reference density | |
| Measurement error | By weight: +-0.35% | |
| Measuring range | 0...2'200'000 kg/h | |
| Operating pressure range | PN 100, Class 600, 63K | |
| Operating temperature | -50...+350°C | |
| Ambient temperature range | Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F) | |
| Sensor housing material | 1.4301/1.4307 (304L), corrosion resistant | |
| Converter housing material | Die-cast aluminum with powder coating 1.4301 (304), sheet CF3M (316L), cast | |
| Degree of protection of electronics | IP 67 NEMA 4x | |
| Display/Customization | 2x-line with backlight Control keys | |
| Output signals | 4...20mA Pulse-frequency Status signal | |
| Input signals | Incoming status signal | |
| Communication | HART PROFIBUS PA | |
| Power supply | 16...62 In the post. current 85...260 VAC (45...65 Hz) 20...55 VAC (45...65 Hz) | |
| Explosion protection certificates | ATEX, IECEx, FM, CSA, NEPSI, TIIS | |
| Other certificates and regulations |
Material 3.1, calibration was performed on certified calibration
equipment (complies with ISO/IEC 17025), NAMUR, SIL, marine
certificate PED, CRN, AD 2000 3A, EHEDG, FDA NACE MR0175/MR0103, PMI; welding testing according to EN, ASME,NORSOK | |
Features
Power Supply, In
~ 400V AC
Working environment
Газ
Dimensions, mm
970*560*720
Brand
Endress Hauser
