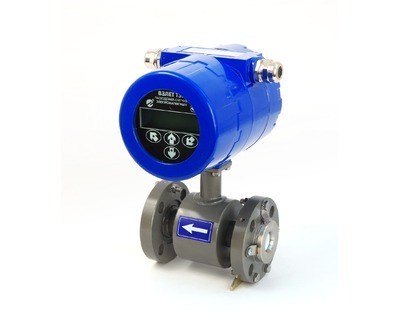

Designed for accurate and stable measurement of flow and volume of various liquids (aggressive, food)
in the technological processes of industrial enterprises.
Intended use:
Take-off of TER Oh — general industrial design;
Take-off TER Ah — aggressive performance;
The rise of TER Ph is a food—grade version.
Special equipment for nuclear power plants is being produced.
Type of connection:
Takeoff of TER hC — "sandwich" (DN 10 and DN 15);
Взлет ТЭР хФ — фланцевое (от DN 20 до DN 300);
Взлет ТЭР хР — «молочная муфта» (DN 15, DN 32, DN 40, DN 50, DN 80).
Measurement error:
±0.35 % is the main relative in the range of expenses from 0.03×Qv naib to Qv naib;
±0.35 % is the main cost in the range from 0.001×Qv naib to 0.03×Qv naib;
the repeatability of the measurement results is ± 0.2 %
Distinctive features:
calculation of mass flow and mass when introducing a liquid density value into the device;
high accuracy, stability and repeatability of the results
