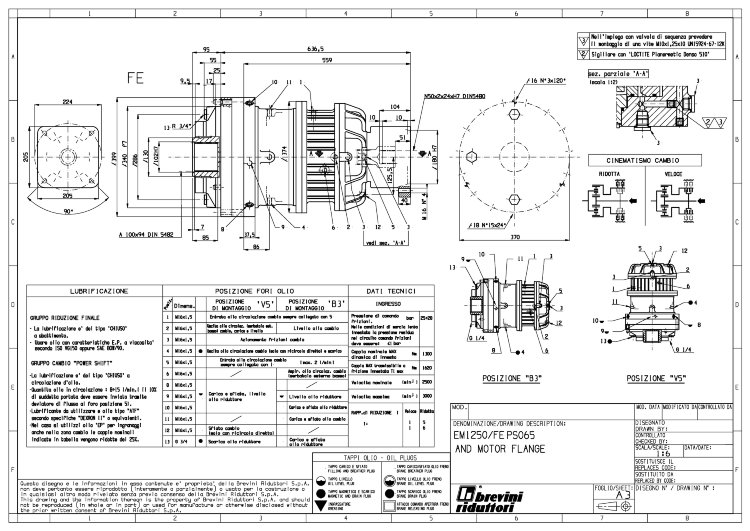

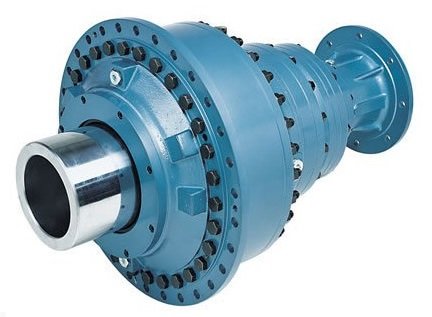

Brevini EM1250/FE PS065 gearbox
Brevini EM1250 gearboxes – for use on industrial equipment.
Flange-mounted coaxial and conical cylindrical planetary gearboxes from Brevini can be used in a wide range of industrial equipment and in mobile mobile installations and machines. The gearboxes are designed on the basis of a flexible modular design system, which allows you to have at your disposal a large number of options with both a hollow output shaft and a solid one.
The configuration with a solid cylindrical or spline shaft is used when radial and axial loads act on the output shaft. The hollow shaft configuration is also used to transfer torque in cases where space is limited and a more compact gearbox design is required. Flange-mounted gearboxes have a large selection of additional parts, which include adapters for electric and hydraulic motors, reliable multi-disc brakes and various configurations with a solid input shaft.
With shaft mounting - in those conditions when it is necessary to ensure the compactness of the gearbox design, coaxial and conical-cylindrical Brevini gearboxes with axle mounting will be the best solution.
The ability of compact and rational trunnion gearboxes to ensure the correct alignment of the shaft of the working machine and the output shaft of the gearbox, as well as their operational flexibility and the fact that there is no need for a foundation frame/plate are the main reasons for their widespread use in all industries. These advantages are complemented by adaptation to various configurations of trunnions: a hollow shaft for mounting with a coupling washer or a fixed cylindrical hollow shaft (type FP).
With mounting on paws - a constructive solution in which the mounting paws are part of the gearbox housing means that the series of coaxial and conical-cylindrical Brevini gearboxes has all the advantages in terms of high operational reliability, ease of maintenance and installation.
The use of tapered roller bearings in the design of these compact, highly efficient gearboxes complements their reliable design, allowing axial and radial loads to be perceived on keyed output cylindrical shafts. For these gearboxes, the mounting position on the feet means that this series of gearboxes is particularly suitable for industrial applications. This is also confirmed by a wide range of additional options, including adapters for electric and hydraulic motors.
Main characteristics and parameters
- standard sizes with torque from 1000 Nm to 25,000 Nm;
- They have up to 4 reduction steps of the mechanism for ratios from 1:3 to 1:3000;
- output options: hollow spline shaft, hollow cylindrical shaft for mounting on a trunnion, solid cylindrical and spline shaft;
- input versions with a solid input shaft, installation of electric and hydraulic motors, the ability to use multi-disc friction brakes;
- a wide selection of components at the entrance and exit;
- the possibility of combination with other gearboxes.]
