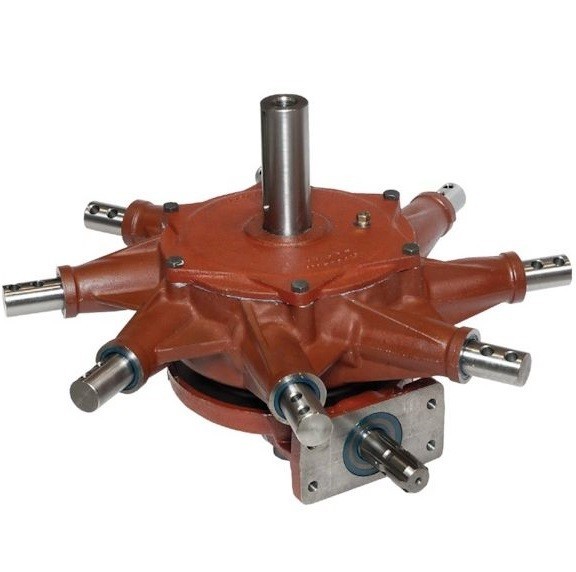

Single-stage gearboxes specially designed for rotary rakes series K-789A from the company Comer Industries They are used to transfer power from the drive shaft to the slave with a decrease in speed, counterclockwise rotation, and have a durable cast-iron housing. The model range is represented by one type of configuration, at the inlet there is a spline shaft (1" 3/8 Z6), at the outlet in the Z direction there are eight axes, smooth shafts with mounting holes for mounting tools for haymaking, as well as the Y axis with a cylindrical shaft (keyway connection).
Comer Industries powertrains cover a wide range of industrial and agricultural sector applications. The range is presented in both standard and specialized versions for performing specific functions as part of a narrow-profile drive.
Technical characteristics of gearboxes for rotary rakes Comer K-789A (9.789.405)
- Torque (output): 190 Nm;
- Transmission ratio: 7,2;
- Rotor diameter: 2.6 m;
- Max. speed (at the entrance): 540 rpm.
To buy gearboxes for rotary rakes Comer K-789A, you can find out the price and more information about the product by contacting our specialists.
