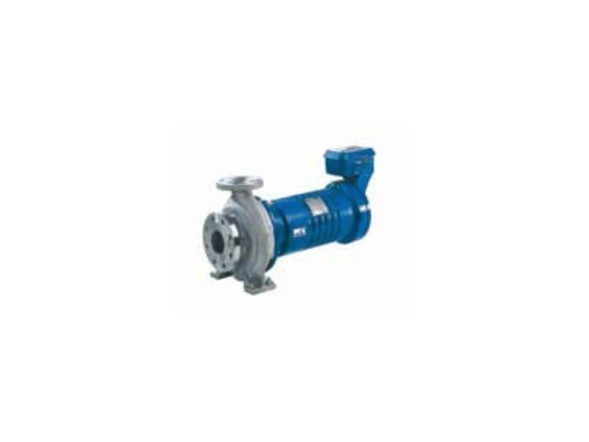

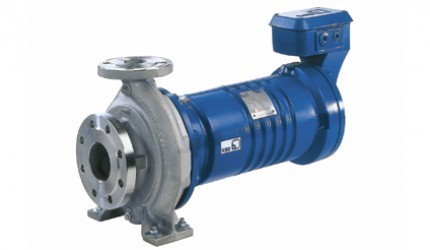

Standard chemical pumps with explosion protection. Secochem Ex

Description:

Horizontal sealed pump with a spiral casing, in a process design, with a fully enclosed sleeve motor, with reduced noise, with a radial impeller, single-stage, single-flow with connecting body dimensions according to EN 22 858 /ISO 2858, with explosion protection. Execution according to ATEX.

Scope of application: for pumping aggressive, flammable, explosive, toxic, easily volatile or expensive liquids in the chemical, petrochemical industry, environmental technologies and other industries.

• Diameter DN: 25 - 100
• Consumption [m3/h]: up to 300
• Head [m]: up to 150
• Pressure [bar]: up to 25
• Temperature [°C]: up to +130
• Network frequency: for 50 Hz
