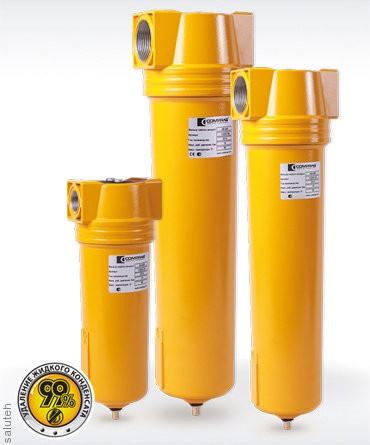

AS separators operate with minimal pressure losses in the network with constant efficiency of the separation process.
Specifications
- The efficiency of condensate and particle removal is 99%
- The size of the condensate and solid particles to be removed is up to 5 microns
- The maximum working pressure is 16 bar
- The maximum operating temperature is 65°C
- Minimum operating temperature 1.5°C
- Wide range of thread sizes from 3/8” to 3”
As standard:
- Automatic condensate drain
Capacity 1.2 - 46.0 m3/min

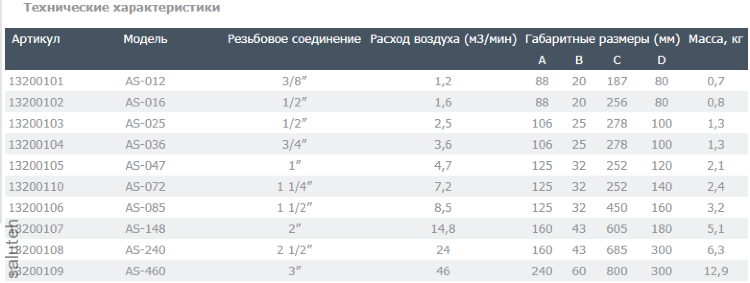

Cyclone separators are installed between the compressor and the refrigerator dryer. AS separators operate with minimal pressure losses in the network with constant efficiency of the separation process. The separator capacity indicated in the table is calculated based on 7 bar operating pressure. To calculate the performance of the separator Список отзывов пуст
|
