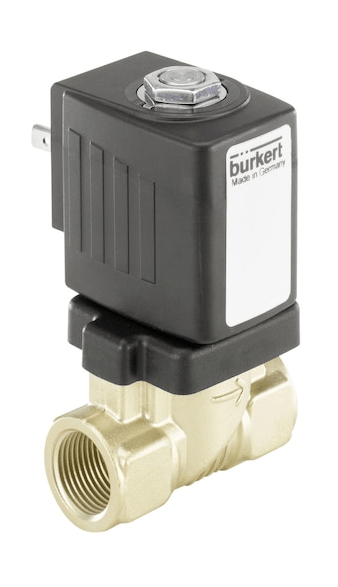

Servo-controlled 2/2-way Diaphragm Valve (178899)

The 6213 EV valve is a servo-controlled diaphragm valve of the S.EV series. The opening process is carried out due to the spring coupling of the membrane with the core. As standard, the valve is suitable for use in liquids. A minimum pressure drop between the inlet and outlet is required for full opening. For use in gas and vacuum environments, a special version (HP00) is offered with a valve opening without pressure drop. Depending on the application, various combinations of sealing materials are available. The standard brass housing meets the requirements of European quality standards for drinking water. For use in the markets of other countries, you can choose versions made of lead-free or galvanized brass. Case material: Stainless steel. Electromagnetic coils are pressed with an epoxy material with high resistance to chemical action. To reduce energy consumption, all coils can be supplied with an electronic device to reduce power. When equipped with a connector according to DIN EN 17301-803, form A valves comply with the requirements of the IP65 protection class, and when equipped with a stainless steel housing, they comply with the NEMA 4X standard.
