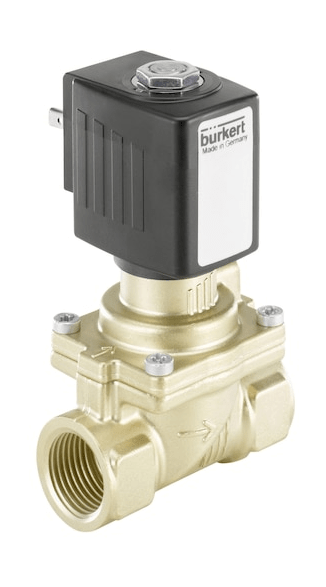

Servo-controlled 2/2-way diaphragm valve (221847)

Valve 6281 is a servo-controlled diaphragm valve of the S.EV series. For proper operation of the valve, a minimum pressure drop between the inlet and outlet is required. Depending on the application, different membrane materials and operating principles are available. The standard brass housing meets the requirements of European quality standards for drinking water. For use in the markets of other countries, you can choose galvanized brass. Case material: Stainless steel. Electromagnetic coils are pressed with an epoxy material with high resistance to chemical action. To reduce energy consumption, all coils can be supplied with an electronic device to reduce power. It is also possible to design a manually operated valve for easy maintenance and commissioning. When equipped with a connector according to DIN EN 17301-803, form A valves comply with the requirements of the IP65 protection class, and when equipped with a stainless steel housing, they comply with the NEMA 4X standard.
