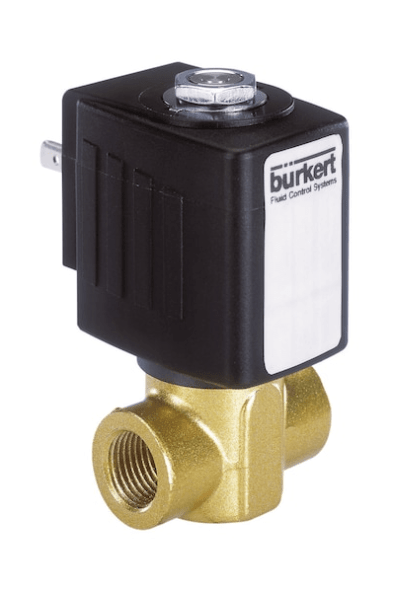

Servo-controlled 2/2-way Piston Valve (177808)

The 6240 valve is a servo-controlled piston valve. To protect against leaks and pressure loss, the stopper and the guide tube are welded to each other. Depending on the application, various combinations of sealing materials are available. The shape and quality of the surface treatment of the housing allow you to work with maximum consumption. The coils are pressed with an epoxy material with high chemical resistance. The use of end sealing rings (optional) allows you to extend the service life of the valve when working with dry gases. To reduce power consumption during operation, you can purchase electronics for forced excitation "Kick and Drop" (connector 2511). When equipped with a connector according to DIN EN 17301-803 form A, the valves meet the requirements of the IP65 protection class. The valves are made of stainless steel and comply with the NEMA 4X standard.
