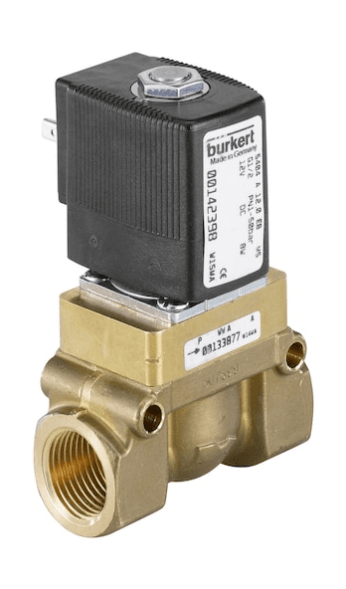

Valve 5404 is a servo-controlled piston valve. It is available in the version of NZ or NO. A minimum level of differential pressure is required to turn on the valve. High-quality epoxy resin coating is applied to the electromagnetic coils. Complete with a connector according to DIN EN 17301-803 form A, the valves meet the requirements of the IP65 protection class. Connectors are not included in the scope of delivery and must be ordered separately.
Features
Power Supply, In
~ 230V AC
Degree of IP protection
IP65
Temperature Tmax, °C
0 до +55°C
Seal material
PTFE (Polytetrafluorethylene)
Weight, kg
1,724 kg
Brand
Burkert
Consumption, m3/h:
10.800 l/min
