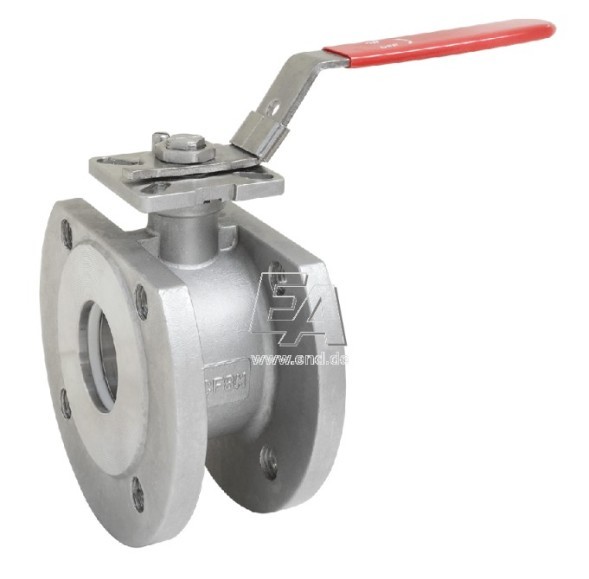

Compact ball valve DN40, PN16/40, Edelstahl 1.4408/PTFE-FKM, ISO5211

Compact ball valve DN40, PN16/40, Edelstahl 1.4408/PTFE-FKM, ISO5211

Art.MK311006
Specifications

• CONNECTION DIN flange
• Compact ball valve
• control lever
• SEAL PTFE
• Stainless steel case
• Size DN40
• Stainless STEEL BALL MATERIAL
• OPERATING PRESSURE FROM 0
• WORKING PRESSURE UP TO 40
• PRINT TEST PT 60
• NOMINAL PRESSURE PN PN40
• CONNECTION SIZE (G_DN) DN40
• THE AVERAGE TEMPERATURE IS -25
• THE AVERAGE TEMPERATURE IS UP TO +180
• AMBIENT TEMPERATURE 0
• THE TEMPERATURE IN THE LIQUID is up to +80
• Stainless STEEL BALL MATERIAL
• STEM SEAL made of PTFE /FKM
• HOUSING CONSTRUCTION 1 PIECE
• STAINLESS STEEL Yes
• CE PED Yes
• ISO 5211 Yes
