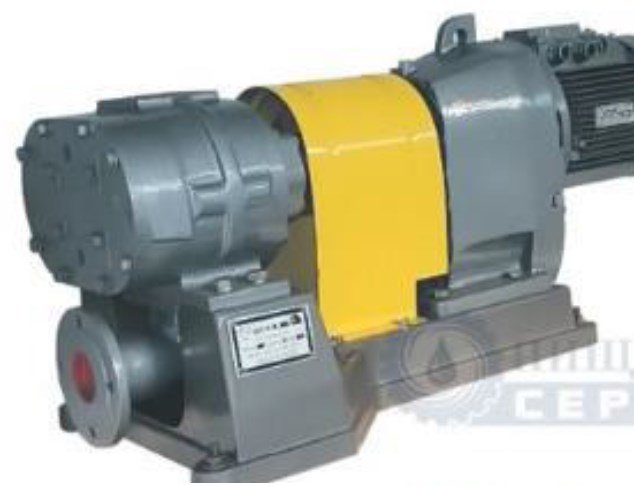

Gear pump SHNKR

Electric pump unit of the brand SHN7KR-3.1

(SHN7K is the brand of the pump, the design of the working part is cast iron, P is the heating jacket, 3.1 is the capacity in m3/hour)

Q=3.1 m3/hour, P=0.8MPa (8atm), N=3.0 kW, n=56/1420 rpm

TECHNICAL CHARACTERISTICS OF THE PUMP:

• Product temperature – up to +90 0C
• Viscosity up to 505 cm/s
• Productivity – 3.1 ± 10% m3/hour
• Discharge pressure - up to 0.8 MPa (8 atm.)
• Number of revolutions – 56 rpm

Electric motor

• (general industrial design (50Hz, IP54, U3)
• Power -3.0 kW
• Number of revolutions – 1420 rpm
• Voltage – 380 V

• The material of the flow part of the pump is Gray cast iron Sch20 GOST 1412-85, Steel 45 GOST 1050-88, Steel 40X13 GOST 5632-72, Steel 08X17T GOST 5632-72, Bronze Br9zH3L GOST 493-79
• The material of the pump body and frame is Grey cast iron Sch20 GOST 1412-85

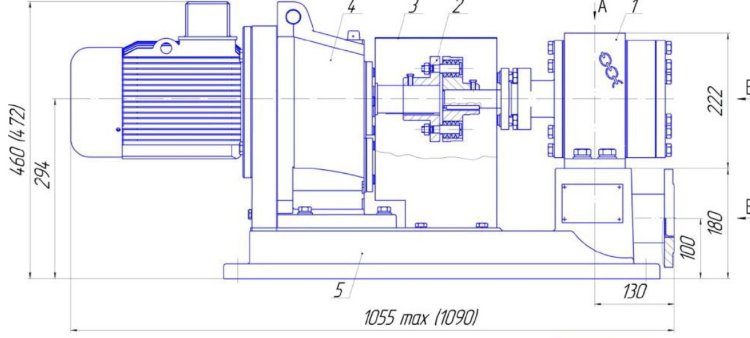

• Overall dimensions – 1055 x 400 x 460 mm
• Weight – 228 kg
