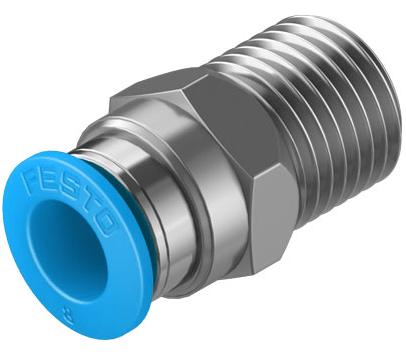

FITTING QSL-1/8-6

FITTING QSL-1/8-6

Characteristic

• Size     Standard
• Conditional passage     7 mm
• Type of sealing of the threaded connection     coverage
• Assembly position     Any
• Container size     10
• Type of construction     The reciprocating principle
• Full operating pressure temperature range     -0,95 ... 6 bar
• Operating pressure depending on temperature     -0,95 ... 14 bar
• Marine classification     see the certificate
• Working environment     Compressed air in accordance with ISO8573-1:2010 [7:-:-]
• Water according to the manufacturer's declaration on www.festo.com
• A note on the work environment     It is possible to work with grease
• Classification of corrosion resistance CRC     1 - Low corrosion resistance
• Ambient temperature     -10 ... 80 °C
• Product Weight     14 g
• Pneumatic connection, channel 1     External thread R1/4
• Pneumatic connection, channel 2     For hoses with an outer diameter of 8 mm
• The color of the release ring     blue
• Notes on the material     Complies with the Directive on the restriction of the use of Hazardous substances (RoHS)
• Housing material     Brass
• Nickel plating
