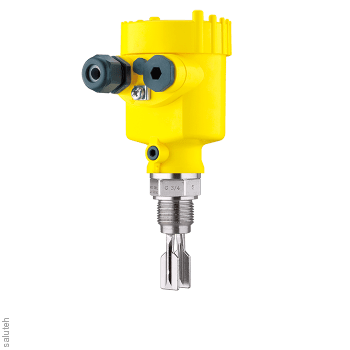

The VEGASWING 61 is designed to signal the limit level of liquids. The vibration alarm in any mounting position registers the limit level with high reliability and millimeter accuracy. The sensor can be mounted on tanks and pipelines and used to signal the maximum and minimum levels, overflow or dry running protection, and pump protection.
Features
- It does not require configuration during commissioning
- The switching point is independent of the product
- Very high reproducibility
- It does not wear out and does not require maintenance
- SIL Qualification
| Material: | 316L, alloy C22, ECTFE, PFA, enamel, alloy 400 | |
| Joining: | thread from Gb, ¾ NPT, flanges from DN 25, 1", hygienic types | |
| Process temperature: | -50 ... +250 °C | |
| Process pressure: | -1 ... +64 bar (-100 ... +6400 kPa) | |
| SIL Qualification: | additionally, up to SIL2 |
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
