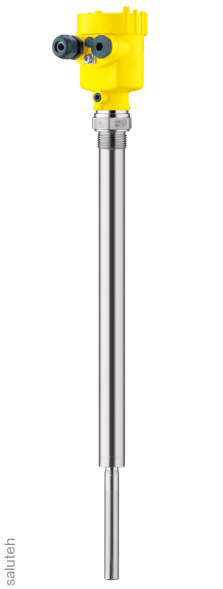

VEGAVIB 63 VB63.XXAGCRVMX Drop Detector L=180mm

VEGAVIB 63 level indicator

VEGAVIB 63 is designed to signal the limit level of granular and coarse-grained bulk products from 20 g/l. The sensor provides reliable and accurate signaling of the minimum or maximum level. The optimal rod design eliminates jamming of the vibrating element by product particles.

Features

• It does not require configuration during commissioning
• The switching point is independent of the product
• The shape of the vibrating element eliminates the jamming of the product granules
• Easy to clean
• It does not wear out and does not require maintenance
• SIL Qualification

Technical data

• Execution:    extension tube up to 6 m
• Joining:    thread from G1, 1 NPT flanges from DN 32, 1½" hygienic types
• Process temperature:    -50 ... +250 °C
• Process pressure:    -1 ... +16 bar (-100 ... +1600 kPa)
• SIL Qualification:    additionally, up to SIL2
