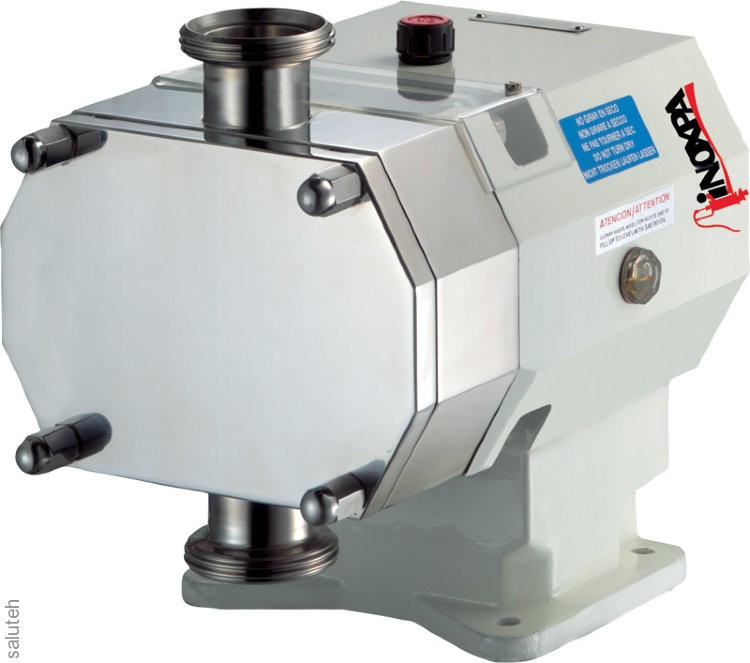

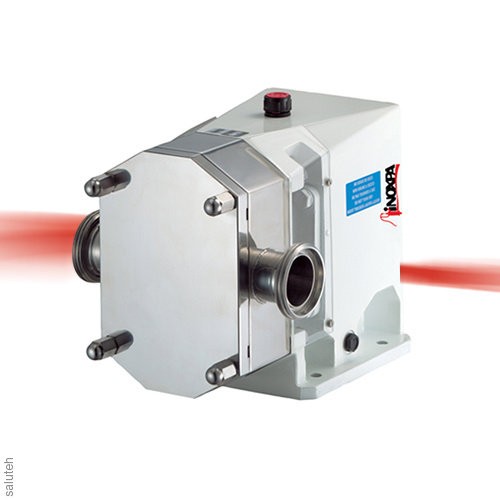

The SLR cam pump is a sanitary volumetric pump designed for use in the food, dairy, cosmetic and pharmaceutical industries.
The SLR cam pump is the optimal pump for pumping liquids, both high and low viscosity, as well as for use in filtration and bottling processes. The special design of the cams ensures gentle pumping of liquids with easily damaged inclusions.
Design and characteristics
The SLR is an open-shaft cam pump. The pump consists of a housing and lid made of cast stainless steel, and rotors with hygienic connection design.
The SLR pump is equipped with an external balanced mechanical seal of hygienic design, C/SiC/EPDM.
If necessary, other materials can be used.
Materials
Parts in contact with the product Stainless steel AISI 316L
Bearing support GG 25
EPDM Seals
Mechanical seal:
Rotating part of Silicon carbide (SiC)
The stationary part of Carbon (C)
EPDM Seals
Surface treatment:
Internal Ra<0,8 μm
Exterior Polished
Options
Mechanical seal made of SiC/SiC or TuC/SiC.
Other sealing options: cooled mechanical seal (quench),
double mechanical seal, lip seal (FPM or PTFE),
oil seal, O-ring.
Gaskets made of FPM or PTFE.
Safety valve or external bypass.
Two-cam rotor.
The heating chamber.
The tank of the cooling system.
Vertical design.
Rectangular entrance/exit.
Various types of drives and protection (gear motor with integrated frequency converter, belt drive, mechanical drive).
A trolley and/or a control panel.
Connections: Clamp, SMS, RJT, etc.
The ATEX version.
