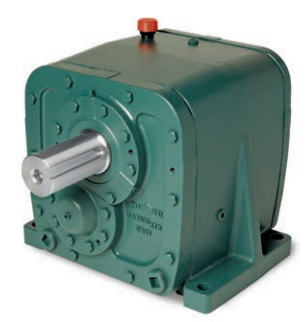

Gearboxes Maxum XTR they have a coaxial arrangement of shafts for the driving and driven equipment, cylindrical gears of two- and three-stage configurations are used for reduction. In operation, these units are characterized by a high power supply density and exceptional reliability over a long service life. It is widely used in various industries, in particular as part of a drive unit for conveyors, crushers, mills, feeders, bucket elevators, etc.
The sturdy frame is made of ductile iron in a compact design with increased structural rigidity. The gears have been processed with high precision, their contact surfaces are carbonized for greater coupling efficiency, smooth operation without excessive heat generation and noise. The support units are equipped with conical or spherical roller bearings with an extended service life. The sealing system of mechanical elements using hydrogenated nitrile ensures the tightness of the structure, protects the shaft from wear and leakage of lubricants.
The model range is represented by seven dimensions, each of which can be made in four configurations for specific conditions of connection to the drive, a large selection of additional functional units and accessories.
Technical characteristics of Dodge (Baldor) Maxum XTR cylindrical gearboxes
- Gear ratio: 2,25 - 194,6;
- Number of steps: 2, 3;
- The torque: up to 74570 Nm;
- Power (input): up to 1177 kW;
- Max. speed (output): 9 - 778 rpm.
Standard sizes of Dodge (Baldor) Maxum XTR gearboxes
Type of gearbox | Reduction coefficient |
DCR50 /TCR50 | 2,25 - 31,39 /38,44 - 194,6 |
DCR60 /TCR60 | 2,25 - 31,39 /38,44 - 194,6 |
DCR70 /TCR70 | 2,25 - 31,39 /38,44 - 194,6 |
DCR80 /TCR80 | 5,06 - 31,39 /38,44 - 194,6 |
DCR90 /TCR90 | 5,06 - 31,39 /38,44 - 194,6 |
DCR100 /TCR100 | 5,06 - 31,39 /38,44 - 194,6 |
DCR110 /TCR110 | 9,30 - 31,39 /38,44 - 194,6 |
DCR120 /TCR120 | 11,39 - 31,39 /38,44 - 194,6 |
DCR130 /TCR130 | 11,39 - 31,39 /38,44 - 194,6 |
You can buy Dodge (Baldor) Maxum XTR coaxial gearboxes, find out the price and more information about the product by contacting our specialists.
