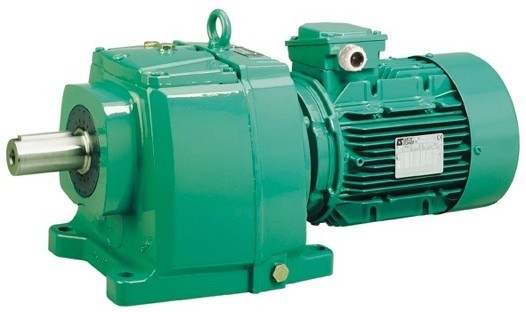

Coaxial Leroy Somer cylindrical gear motors series Compabloc They are a universal solution for creating an electromechanical drive that is suitable for both the equipment manufacturer and the end user who is faced with the task of upgrading or repairing equipment.
A distinctive feature of Leroy Somer gear motors is high reliability, long service life and low operating costs.
Working with the harshest modes, constant exposure to aggressive environments and temperatures, minimal maintenance – Leroy-Somer gearboxes are created for these conditions.
Technical characteristics of Compabloc gearboxes
- Overall dimensions: 15, 17, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38;
- Rated output torque: from 10 to 16,000 Nm;
- Rated power: from 0.06 to 110 kW;
- Gear ratio: from 1.25 to 252;
- Number of steps: 1, 2, 3, 4;
- High efficiency: 95% - 98%;
- Low noise and vibration levels;
- Reverse movement.
Design of gearboxes
Me - integrated gearbox and electric motor design, mounting via flange IMB14;
About - universal design, mounting of the electric motor on the flange according to IEC standard;
AP - gearbox with standard input shaft, coupling mounting;
Mounting design of the gearbox: BS, BD, BR – flange /S, BT - paws.
Parameters of LS, LSES, LSMV electric motors
Voltage 3~ 230/400V Y, 3~400V Δ; Energy efficiency IE2/IE3; Degree of protection IP55;
Options: temperature protection of windings, independent ventilation, feedback sensors.
Types of electromagnetic brakes for Compabloc gearboxes
FMD - fail-safe brake for motors from 0.06 to 0.25 kW, IP 55 (LS 56 to 71);
FCR - fail-safe brake for motors from 0.25 to 15 kW (LS), from 0.75 to 11 kW (LSES), IP 55;
FCPL is a fail-safe brake for motors from 11 to 75 kW, IP 44 (LS, LSES 160 and 225).
The gear motor is supplied with the required amount of oil in accordance with the installation design. The gearbox is equipped with drain holes, level control and a breathing valve.
Standard sizes of Compabloc gearboxes: Cb1502, Cb1503, Cb1504, Cb1702, Cb1703, Cb2002, Cb2102, Cb2103, Cb2202, Cb2203, Cb2302, Cb2303, Cb2402, Cb2403, Cb2502, Cb2503, Cb2602, Cb2603, Cb2702, Cb2703, Cb2802, Cb2803, Cb2903, Cb3031, Cb3032, Cb3033, Cb3131, Cb3133, Cb3231, Cb3233, Cb3331, Cb3333, Cb3335, Cb3431, Cb3433, Cb3435, Cb3531, Cb3533, Cb3535, Cb3633, Cb3635, Cb3733, Cb3735, Cb3833, Cb3835.
Regarding the selection and supply of Leroy-Somer cylindrical gear motors, please contact our engineers by phone. saluteh or email saluteh.
