Explosion protection of gearboxes of the Compabloc (Cb), Orthobloc (Ot), Manubloc (Mub), Multibloc (Mb) series is provided by types of explosion protection: structural safety protection "c" according to GOST 31441.5-2011 (EN 13463-5:2003), liquid immersion protection "k" according to GOST 31441.8-2011 (EN 13463-8:2003) and the design in accordance with the requirements of GOST 31441.1-2011 (EN 13463-1:2001).
Protection against ignition of combustible dust by gearboxes of the Compabloc (Cb), Orthobloc (Ot), Manubloc Mub), Multibloc (Mb) series is ensured by meeting the requirements of GOST R IEC 60079-31-2010 gearboxes and their design in accordance with the requirements of GOST R IEC 60079-0-2011.
Scope of application – explosive zones of premises and outdoor installations in accordance with the marking of explosion protection or the marking of protection against ignition of combustible dust in accordance with GOST IEC 600079-14-20011, regulating the use of equipment in explosive zones or in areas dangerous for ignition of combustible dust.

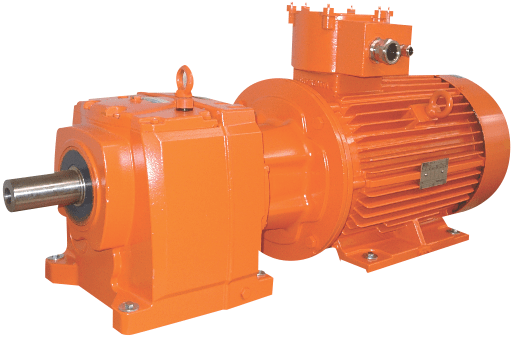

Parameters of explosion-proof gear motors Leroy Somer
- Rated output torque: from 10 to 16,000 Nm;
- Rated power: from 0.06 to 110 kW;
- Gear ratio: from 3 to 25;
- Reduction coefficient: from 1.25 to 2700;
- Number of steps: 1, 2, 3, 4;
- High efficiency: 95% - 98%;
- Low noise and vibration levels;
- Reverse movement;
- Degree of protection: IP 65;
- Operating temperature range: -25...+60°C.
The gear motors of the Compabloc (Cb), Orthobloc (Ot), Manubloc (Mub), Multibloc (Mb) series correspond to the classification categories of operating conditions
- Group II (explosive atmosphere, excluding mines, surface production);
- Category 2 (protection level is high, the presence of an explosive atmosphere is likely);
- Category 3 (the appearance of an explosive atmosphere only in case of an accident, but not in normal operation);
- Explosive gas and dust environments of zones 1, 2 and 21, 22 (G – a mixture of air and gas, steam, vapors; GD -a mixture of air, gas and explosive dust).
Types of gear motors for explosive gas environments (zone 1, 2)
II G c T4/T5, or II G k T4/T5
Type of explosion protection: "k" - liquid immersion, "c" - structural feature;
Temperature class: T4=135°C, T5=100°C;
Types of gear motors for explosive dust environments (zone 21, 22)
II D c T125°C, or II D k/c T100°C/T135°C
Type of explosion protection: "k" - liquid immersion, "c" - structural feature.
