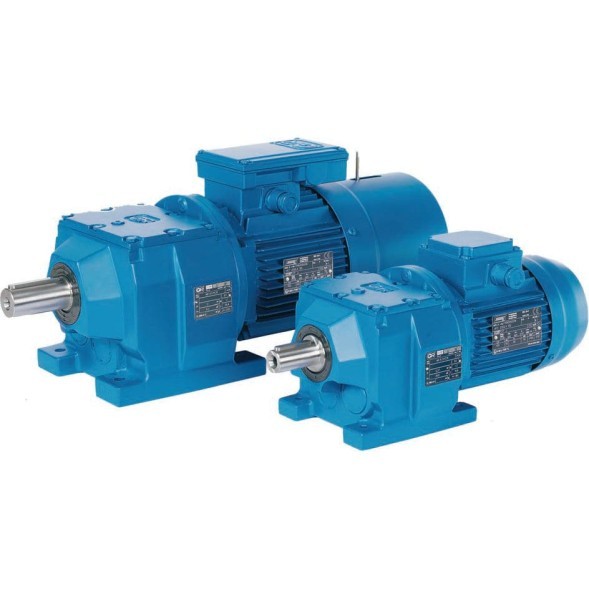

Rossi Cylindrical Gearboxes coaxial shafts are represented by a wide range of block dimensions and their motorized versions in two- (2I) and three-stage (3I) configurations of cylindrical pre-gears, a model range of eight block dimensions. The design of the STANDARDFIT low-speed shaft ensures maximum compatibility of the drive units, without any design changes.
Monolithic frame reinforced with ribs for maximum rigidity, hardened steel gears. The design is designed in such a way as to provide high overload resistance, smooth running and quiet operation. These are reliable, productive and at the same time very compact gear motors. The installed asynchronous three-phase motors are supplied with or without an integrated brake assembly, standardized IEC dimensions.
Technical characteristics of Rossi coaxial gear motors with STANDARDFIT output (ES catalog)
- Gear ratio: 4 - 200;
- Rated torque: 56 - 900 Nm;
- Motor power: 0.09 - 11 kW;
- Speed (output): 4.5 - 710 rpm;
- Number of steps: 2, 3;
- Mounting design: B3, B6, B7, B8, V5, V6, B5, V1, V3.
Standard sizes of Rossi coaxial cylindrical gearboxes with STANDARDFIT output (Cat. ES)
Type of gearbox | Nom. moment, Nm |
MR 2I 0 PC 3E /MR 3I 0 PC 3E | 56 |
MR 2I 1 PC 3E /MR 3I 1 PC 3E | 95 |
MR 2I 2 PC 3E /MR 3I 2 PC 3E | 150 |
MR 2I 3 PC 3E /MR 3I 3 PC 3E | 224 |
MR 2I 4 PC 3E /MR 3I 4 PC 3E | 335 |
MR 2I 5 PC 3E /MR 3I 5 PC 3E | 500 |
MR 2I 6 PC 3E /MR 3I 6 PC 3E | 670 |
MR 2I 7 PC 3E /MR 3I 7 PC 3E | 900 |
To buy Rossi coaxial gear motors with STANDARDFIT output (ES catalog), you can find out the price and more information about the product by contacting our specialists.
