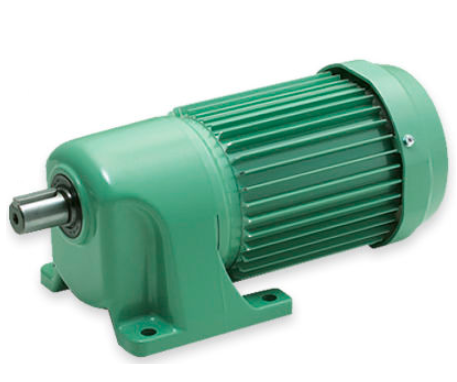

Series GMTA It is a compact combination of coaxial gearboxes with cylindrical gears and three-phase motors with a power of up to 5.5 kW manufactured by Tsubaki. Thanks to the particularly careful processing technology of the mechanisms, they have proven themselves to be reliable and silent drives with a long service life. Also, in addition to the selected pair of component gear motors, the transmission unit GRACE with the necessary adapter at the input, it can be supplied separately.
The model range consists of eight standard sizes with two-, three- and four-speed gear configurations, providing a wide range of gear ratios. Lightweight aluminum engine housing design, enclosed design with natural cooling or self-ventilation. Foot mounting, straight or flanged connection, suitable for horizontal, vertical or inclined mounting positioning. Versions of the motor are available with or without a built-in brake block, as well as a wide range of optional features.
Technical characteristics of coaxial gearboxes and gear motors Tsubaki series GRTA, GMTA
- Gear ratio: 5 - 1200;
- Number of steps: 2, 3, 4;
- Nominal torque: 2.8 - 2156 Nm;
- Motor power: 0.1 - 5.5 kW;
- Output speed: 1.3 - 300 rpm.
Standard sizes of gearboxes and gear motors Tsubaki series GRTA, GMTA
Type of gearbox | Ratio reductions | Nom. moment, Nm | Power the motor, kW | Speed at the exit, rpm |
GMTA010, GRTA010 | 5 - 1200 | 2,8 - 459 | 0,1 | 1,3 - 300 |
GMTA020, GRTA020 | 5 - 1200 | 5,7 - 840 | 0,2 | 1,3 - 300 |
GMTA040, GRTA040 | 5 - 1200 | 12,1 - 1680 | 0,4 | 1,3 - 300 |
GMTA075, GRTA075 | 5 - 450 | 22,6 - 1396 | 0,75 | 3,3 - 300 |
GMTA150, GRTA150 | 5 - 200 | 45,3 - 1470 | 1,5 | 7,5 - 300 |
GMTA220, GRTA220 | 5 - 200 | 66,6 - 2156 | 2,2 | 7,5 - 300 |
GMTA370, GRTA370 | 5 - 50 | 112 - 1083 | 3,7 | 30 - 300 |
GMTA550, GRTA550 | 5 - 30 | 167 - 893 | 5,5 | 50 - 300 |
Buy coaxial cylindrical gearboxes and Tsubaki series gear motors GRACE, GMTA You can find out the price and more information about the product by contacting our specialists.
