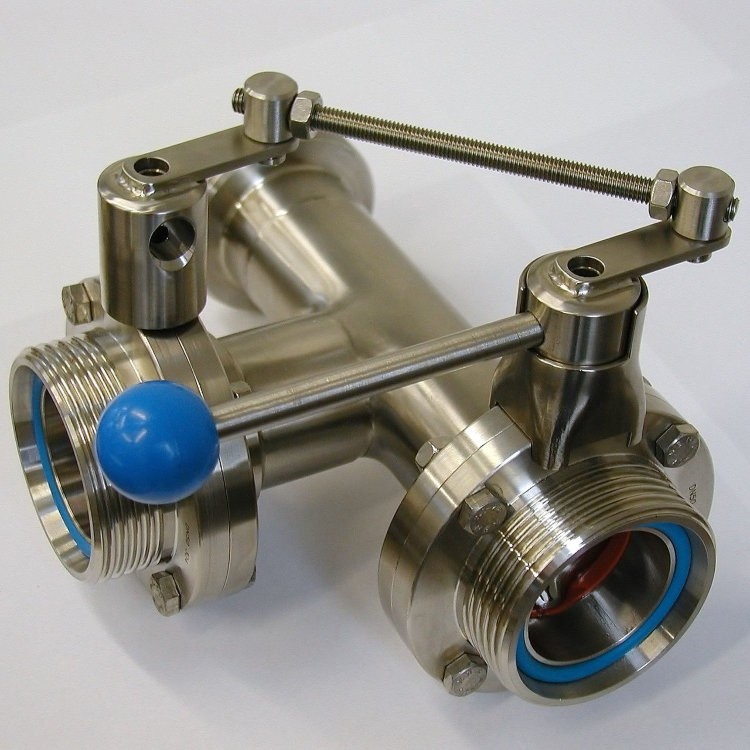

T-shaped disc sanitary valve (M-M-M) ISO SS304L/EPDM
It consists of several disc valves
The butterfly valve, which is also called a double-leaf valve, is a simple design of control valves, its main role is to shut off and throttle the flow of liquid in the pipeline. This valve is suitable for all kinds of stainless steel piping system.
Execution:
It has been developed and documented in accordance with the requirements of such industries as the pharmaceutical, biotechnological, and cosmetic industries.
There are handles for 2 positions, 4 positions, 90° adjustable and fixed multi-position. The valve is supplied with welded or clamping connections.
Valve
Quick Description
Material | SUS304, SUS316, SUS316L |
Seal material | EPDM, SILICON, FDM, HNBR |
Collaborative style | Welding, Thread, Clamp, Welding /thread, Flange |
Connection style | DN11850, ISO, SMS |
A pen | Standard or Customrized |
Pneumatic drive | Pneumatic off /pneumatic open |
Power | Manual and pneumatic |
Painting
H1 | E | ISO |
90 | 34,5 | 25 |
90 | 34,5 | 32 |
90 | 34,5 | 38 |
96 | 46,5 | 51 |
98 | 53,5 | 63,5 |
102 | 61,5 | 76,1 |
114 | 78 | 101,6 |
