Plate heat exchanger Tranter GC-051N

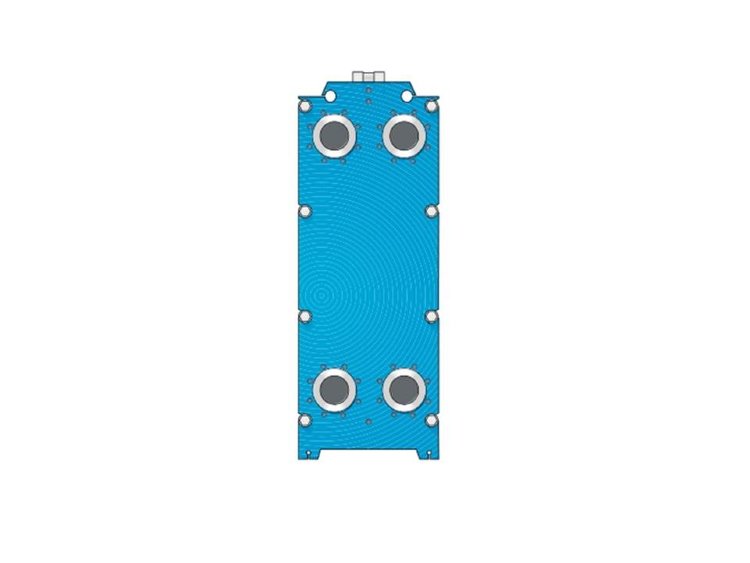

Heat exchanger Tranter models GC-051 N It is made of a package of heat exchange plates firmly fixed on two consoles: a carrier and a guide.

The plates for the Tranter heat exchanger are based on AISI 304 or AISI 316 stainless steel with titanium coating, which allows the plates to withstand external influences.

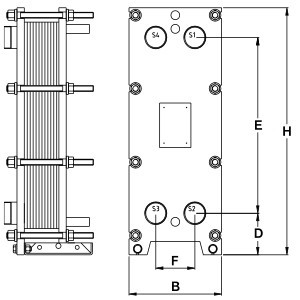

Sizes

• D – 300 mm;
• Height H – 1730 mm;
• The diameter of the connection is DN – 150;
• B – 5 mm;
• E – 1143 mm;
• F – 300 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GC-051 N

• maximum operating temperature 180 °C;
• maximum working pressure
