Heat exchanger GBS100M-10R(CG1,CG2)

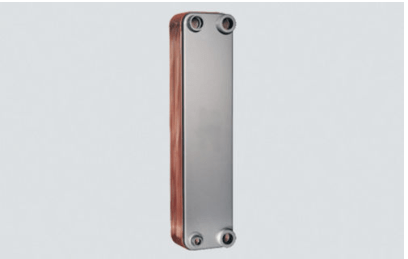

Brazed heat exchanger GEA GBS series
GBS SERIES HEAT EXCHANGERS WITH COPPER SOLDER ARE PRINTABLE
The GBS series is a standard series of brazed heat exchangers (used at pressures up to 30 bar and temperatures up to 200 ° C), the GBE series is an economical series (for pressures up to 16 bar and temperatures up to 150 ° C).
The plates are stamped and bagged on an automated press line, and the soldering process is controlled by a computer. All equipment is subjected to pneumatic and hydraulic tests before shipment.
Application:
- DHW systems;
- underfloor heating systems;
- snow melting stations;
- evaporators of refrigerating machines;
- heaters and condensers;
- oil coolers;
Name: GBS100M-10R(CG1,CG2)
Thermal parameters heating side heated side Medium:
Water hot Water cold
Heat output: 8.00
kW
Mass consumption: 343 197
kg/h
Volume consumption: 0,35 0,20
m³/h
Inlet temperature: 85.00 35.00
°C
Outlet temperature: 65.00 70.00
°C
Pressure loss: 1,586 0,303
kPa
Working inlet pressure: 5.00 3.00
barg
Heat exchanger Parameters
Heat transfer area (total /per unit): 0.11 0.11
m²
Average temperature pressure: 21.64
K
Surface reserve: 22,62
%
Plate material: AISI316L
Solder Material: Copper
Flow direction:
Number of frames (parall./last./general): 1 1 1
The material of the first and last plate: 1.4301
The types and location of the connections are indicated in the attached drawing. Manufacturing standard:
PED WTT
Note: 1. The temperature difference between the heating and heated media at the entrance to the heat exchanger
it should not exceed 100C.
2. The actual values of the heat exchanger parameters depend on the degree of compliance with the actual conditions
calculated.
