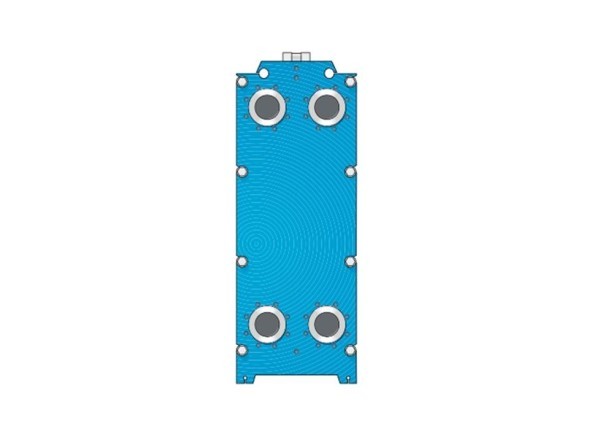

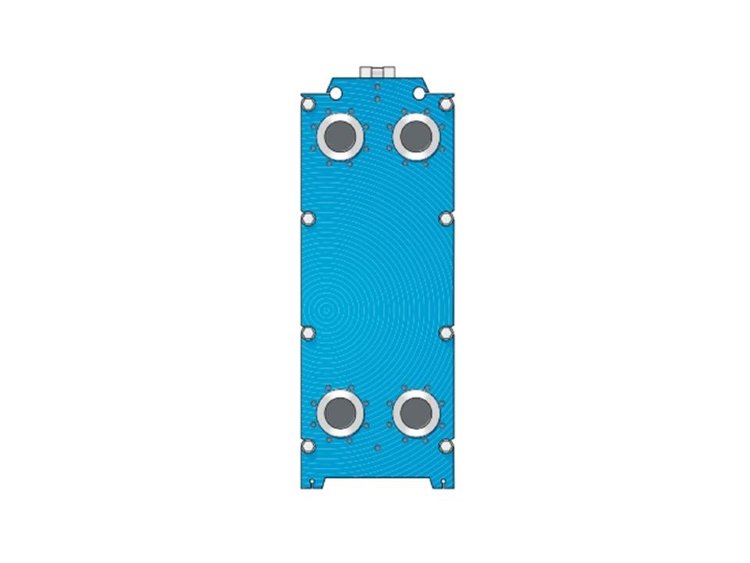

Plate heat exchanger GC-051P

The plates for the equipment are made of high-quality steel produced in Sweden. In the model GC-051 P A certain number of corrugated plates have been specially selected, which allows for maximum heat transfer and increases the efficiency of the heat exchanger.

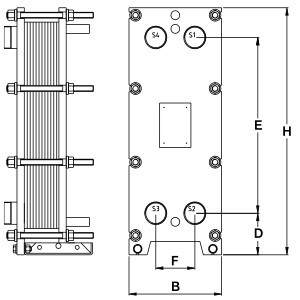

Sizes

• D – 300 mm;
• Height H – 1730 mm;
• The diameter of the connection is DN – 150;
• B – 630 mm;
• E – 1143 mm;
• F – 300 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GC-051 P HEAT EXCHANGER

• maximum operating temperature 180 °C;
• The maximum working pressure is 16 bar;
• materials used
