Plate heat exchanger Tranter GD-009P/PI

Heat exchanger Tranter GD-009 P/PI It is characterized by a lightweight design, which consists of a package of corrugated plates. Swedish stainless steel is used as the material for their manufacture.

The plates are installed in the package at an angle of 180 degrees with mounting on the carrier and guide consoles. For greater reliability, the finished package is clamped between two plates: movable and fixed.

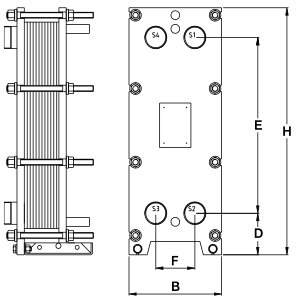

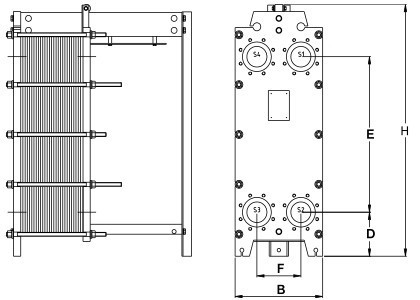

Sizes:

• D – 90 mm;
• height H – 725 mm;
• the diameter of the connection is DN – 40;
• B – 250 mm;
• E – 555 mm;
• F – 100 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GD-009 P/PI
