Plate heat exchanger Tranter GD-013 P/PI

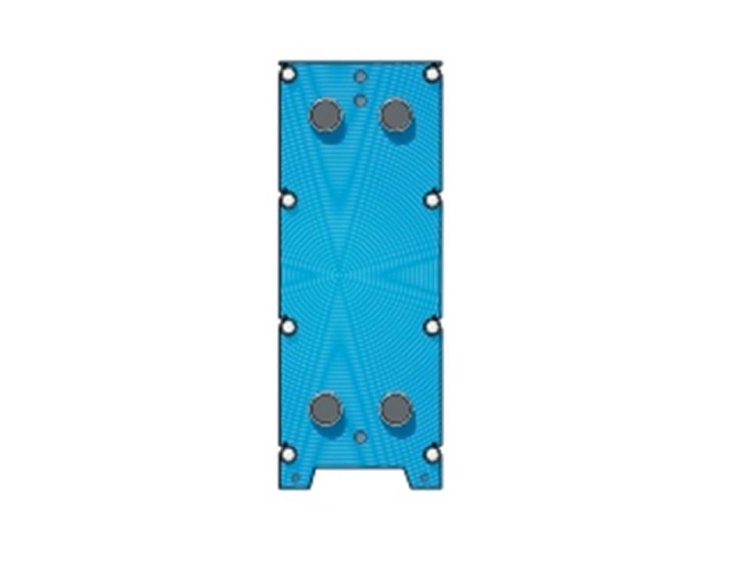

Plate heat exchanger Tranter GD-013P/PI It is characterized by a lightweight modular design. The plates made of Swedish stainless steel are completed at an angle of 180 degrees to each other, while they are fixed on the carrier and guide consoles. For greater reliability, the finished package is clamped with two plates: movable and fixed.

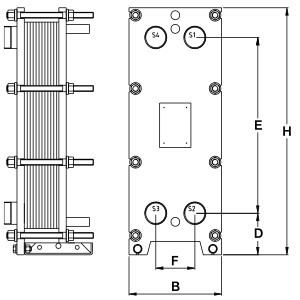

Sizes:

• D – 140 mm;
• height H – 832 mm;
• connection diameter DN – 50/65;
• B – 320 mm;
• E – 592 mm;
• F – 135 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GD-013 P/PI HEAT EXCHANGER

• maximum operating temperature 180 °C;
• The maximum working pressure is 16 ba
