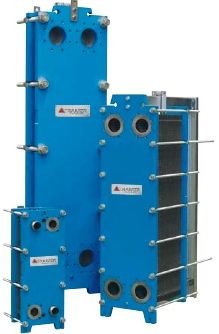

Plate heat exchanger Tranter GD-016P/PI

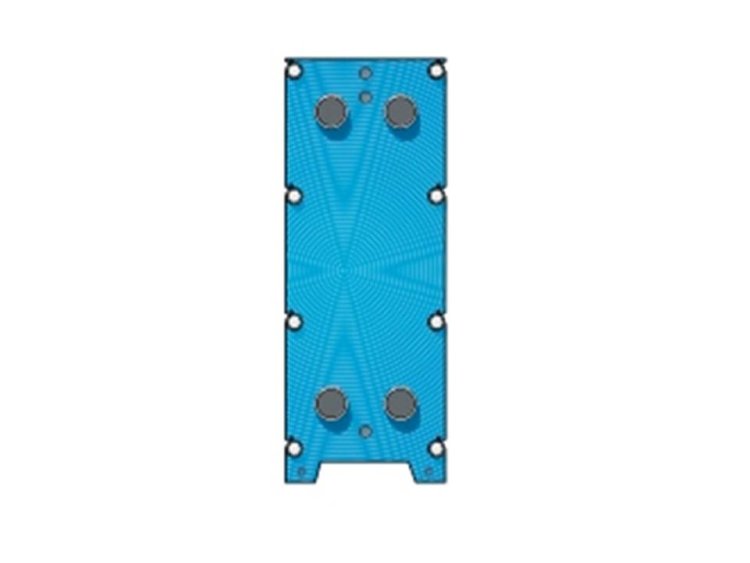

Heat exchanger Tranter GD-016P/PI it is a plate structure, the corrugated plates of which are assembled together and installed at an angle of 180 degrees. At the same time, Swedish stainless steel is used for their manufacture. The plate assembly is fixed on the support and guide consoles. The package, in turn, is clamped by movable and fixed plates.

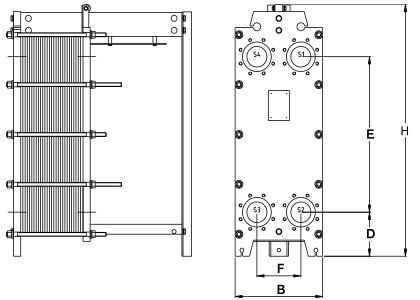

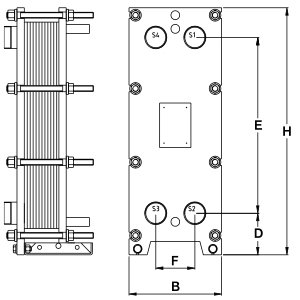

Sizes:

• D – 140 mm;
• height H – 832 mm;
• connection diameter DN – 50/65;
• B – 320 mm;
• E – 592 mm;
• F – 135 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GD-016 P/PI HEAT EXCHANGER

• maximum operating temperature 180 °C;
• maximum
