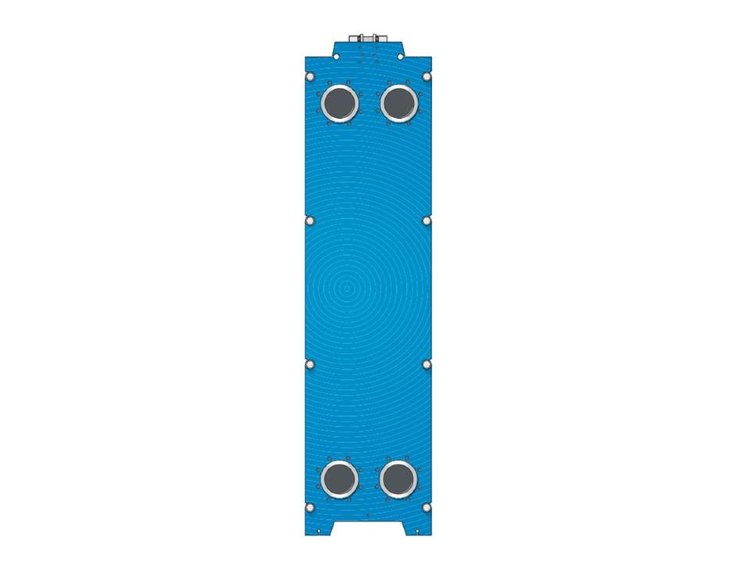

Plate heat exchanger Tranter GF-097N

Heat exchanger Tranter GF – 097N It is equipped with wide-gap plates, which are the most effective for use in working with liquids containing fibers and particles that lead to clogging.

Sizes

• D – 369 mm;
• height H – 2329 mm;
• the diameter of the connection is DN – 200;
• B – 825 mm;
• E – 1503 mm;
• F – 380 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GF – 097N

• maximum operating temperature 180 °C;
• The maximum working pressure is 10 bar;
• the sealing materials used are Nitrile, EPDM, FKM, Viton;
• материал пластин - SMO 254, AISI 304/EN 1.4301, AISI 316/EN 1.4401, Титан Cr.1, Титан Cr.11, Hastelloy C-276.

SCOPE OF APPLICATION
Tranter GF – 097 heat exchangers are used in the pharmaceutical industry, in the food industry, as well as for cooling transformer oil in the electric power industry.
