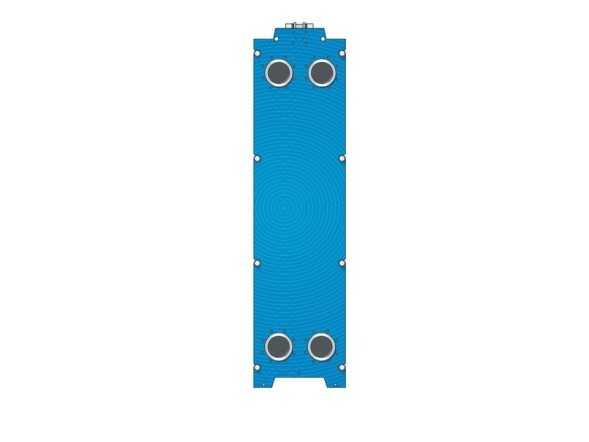

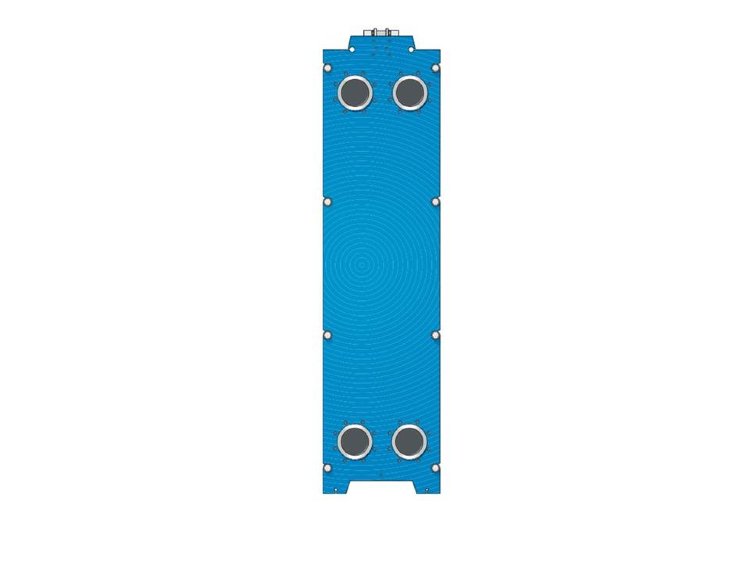

Plate heat exchanger Tranter GF-187N

Plate heat exchanger Tranter GF-187N

The GF – 187N plates are equipped with channels that are five times wider than usual, which allows unlimited passage of coarse particles and liquids containing fibers. The maximum clearance is 12 millimeters. Wide-gap plates can be combined in two ways, thus forming one wide and one narrow passage or two wide passages.

Sizes

• D – 369 mm;
• height H – 3298 mm;
• the diameter of the connection is DN – 200;
• B – 825 mm;
• E – 2473 mm;
• F – 380 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GF – 187N HEAT EXCHANGER

• maximum operating temperature 180 °C;
• The maximum working pressure is 10 bar;
• the sealing materials used are Nitrile, EPDM, FKM, V
